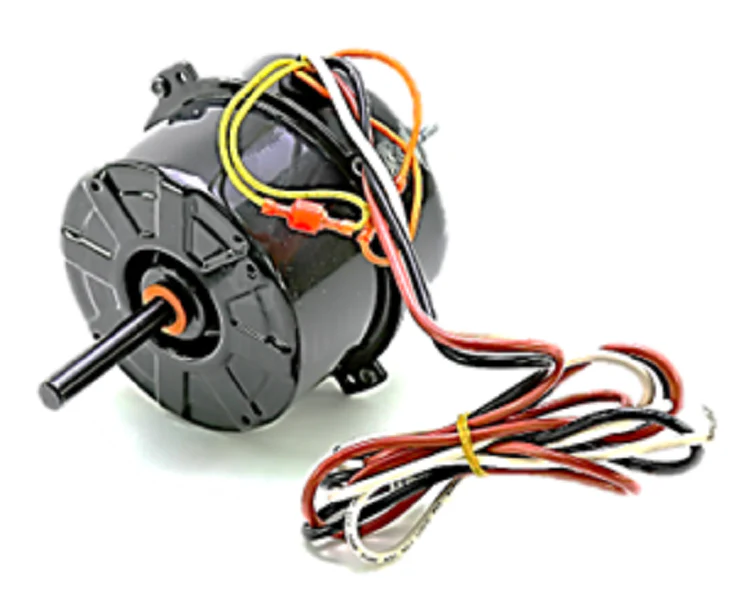

Nidec-US Motors 2249 Motor
The Nidec-US Motors 2249 Motor is a high-performance 1/8 HP condenser fan motor engineered for residential outdoor condensing units and heat pumps. This PSC (Permanent Split Capacitor) motor operates at 1075 RPM with a 208-230V single-phase input, drawing only 0.90 Amps for maximum efficiency in HVACR applications. Built with a 42Y NEMA frame size and Totally Enclosed Air Over (TEAO) enclosure, this 5-inch diameter motor provides superior protection against environmental debris and moisture, ensuring reliable heat transfer across the condenser coils.
Designed for professional contractors, the 2249 features a reversible rotation and stud mount configuration, offering versatile compatibility as a direct replacement motor for various OEM brands. Its "Cap-Can" clamshell construction and self-aligning sleeve bearings are optimized for vertical shaft-down applications, common in units up to 3.5 tons. The motor includes automatic thermal overload protection to prevent winding failure during high-ambient operation. When installing, ensure the 1/2-inch flat shaft is properly aligned and verify that the 5 MFD/370V capacitor is within spec to maintain the continuous duty rating and protect the single-speed drive system.
Key Benefits:
- Universal Versatility: The reversible rotation and 42Y frame allow it to serve as a drop-in replacement for many 1/8 HP outdoor fan assemblies.
- Climate Durability: The TEAO enclosure prevents dust and moisture from entering the motor, crucial for maintaining air-over cooling performance in harsh outdoor conditions.
- Internal Safety: Built-in automatic reset thermal overload protects the windings from overheating due to airflow obstructions or capacitor degradation.
- Optimized Efficiency: The PSC motor design and low 0.90 Amp draw ensure precise speed regulation at 1075 RPM while minimizing energy consumption.
Common Questions:
- What capacitor is required for this motor? This motor is designed for use with a 5 MFD / 370V run capacitor. Using an incorrectly sized capacitor can cause over-amping or premature failure.
- Can this be used for shaft-up mounting? Professional specifications recommend this model primarily for vertical shaft-down residential applications; ensure drain plugs are oriented correctly for moisture drainage.
- Is the rotation easy to change? Yes, the rotation is electrically reversible, making it adaptable to both CW and CCW lead-end requirements during service calls.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $175.42
-65%$175.42
$61.40Nidec-US Motors 2249 Motor
The Nidec-US Motors 2249 Motor is a high-performance 1/8 HP condenser fan motor engineered for residential outdoor condensing units and heat pumps. This PSC (Permanent Split Capacitor) motor operates at 1075 RPM with a 208-230V single-phase input, drawing only 0.90 Amps for maximum efficiency in HVACR applications. Built with a 42Y NEMA frame size and Totally Enclosed Air Over (TEAO) enclosure, this 5-inch diameter motor provides superior protection against environmental debris and moisture, ensuring reliable heat transfer across the condenser coils.
Designed for professional contractors, the 2249 features a reversible rotation and stud mount configuration, offering versatile compatibility as a direct replacement motor for various OEM brands. Its "Cap-Can" clamshell construction and self-aligning sleeve bearings are optimized for vertical shaft-down applications, common in units up to 3.5 tons. The motor includes automatic thermal overload protection to prevent winding failure during high-ambient operation. When installing, ensure the 1/2-inch flat shaft is properly aligned and verify that the 5 MFD/370V capacitor is within spec to maintain the continuous duty rating and protect the single-speed drive system.
Key Benefits:
- Universal Versatility: The reversible rotation and 42Y frame allow it to serve as a drop-in replacement for many 1/8 HP outdoor fan assemblies.
- Climate Durability: The TEAO enclosure prevents dust and moisture from entering the motor, crucial for maintaining air-over cooling performance in harsh outdoor conditions.
- Internal Safety: Built-in automatic reset thermal overload protects the windings from overheating due to airflow obstructions or capacitor degradation.
- Optimized Efficiency: The PSC motor design and low 0.90 Amp draw ensure precise speed regulation at 1075 RPM while minimizing energy consumption.
Common Questions:
- What capacitor is required for this motor? This motor is designed for use with a 5 MFD / 370V run capacitor. Using an incorrectly sized capacitor can cause over-amping or premature failure.
- Can this be used for shaft-up mounting? Professional specifications recommend this model primarily for vertical shaft-down residential applications; ensure drain plugs are oriented correctly for moisture drainage.
- Is the rotation easy to change? Yes, the rotation is electrically reversible, making it adaptable to both CW and CCW lead-end requirements during service calls.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
