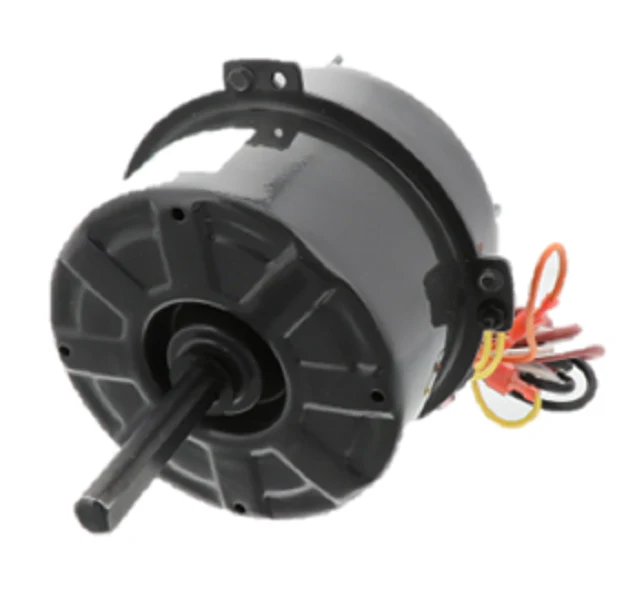

Nidec-US Motors 2243 Motor
The Nidec-US Motors 2243 is a purpose-built condenser fan motor engineered for residential outdoor units and heat pumps up to 3.5 tons. As a 1/10 HP, 1075 RPM replacement motor, it features a permanent split capacitor (PSC) design that ensures efficient operation under high-load conditions. The TEAO (Totally Enclosed Air Over) enclosure is essential for protecting internal components from environmental debris, while the self-aligning sleeve bearing system provides quiet, reliable performance in vertical shaft-down applications. This 42Y NEMA frame motor operates on 208-230Vac single-phase power, drawing a low 0.75 Amps to maintain system efficiency. With its reversible rotation capability and 4-stud mounting configuration (#8-32 studs on a 4-5/16 inch bolt circle), the 2243 offers the versatility required for field service technicians to match various OEM specifications, including various Carrier, Lennox, and Amana models. The 1/2-inch diameter shaft includes a flat for secure fan blade attachment, and the motor includes an automatic reset thermal overload protector to prevent winding failure during extreme ambient conditions.
Key Benefits:
- Universal application with reversible rotation to match CCW or CW lead-end requirements.
- TEAO enclosure designed for maximum protection against moisture and dust in outdoor environments.
- High-temperature Class B insulation rated for up to 60°C ambient operation.
- Standard 42-inch leads allow for flexible wiring across different housing sizes.
- Compact 5-inch diameter clam shell design fits tight mounting spaces in residential units.
Common Questions:
What capacitor is required for the US Motors 2243?
This motor requires a 5 MFD / 370 VAC run capacitor (sold separately) for proper startup and torque performance.
Can this motor be used in a shaft-up configuration?
The 2243 is optimized for vertical shaft-down mounting which is the standard for most residential condensing units.
Is the rotation fixed?
No, the rotation is easily reversible in the field using the quick-connect leads, making it a highly adaptable service part.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
