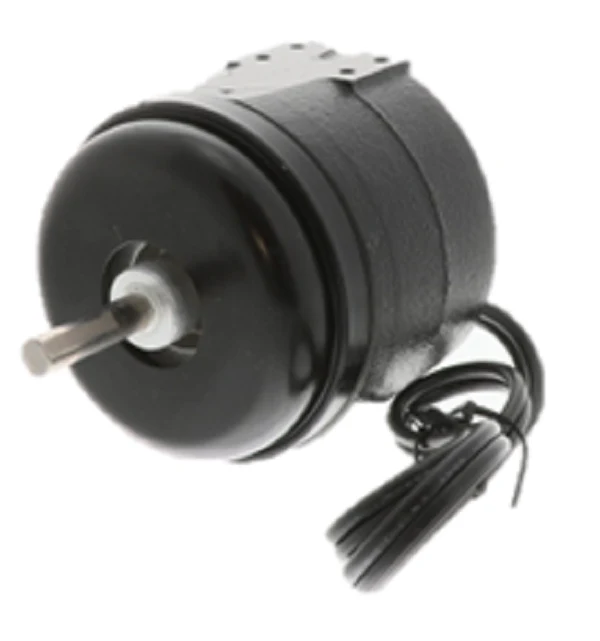

Nidec-US Motors 2135 Fan Motor
The Nidec-US Motors 2135 Fan Motor is a rugged shaded pole unit bearing motor engineered for precision performance in commercial refrigeration and HVAC systems. Operating at 230Vac with a 50-watt output, this motor maintains a consistent 1550 RPM, drawing 0.9 Amps. Designed with a totally enclosed enclosure (TEO), it effectively prevents dust and moisture ingress, ensuring internal components remain protected in harsh environments. The 3/8" shaft and CW lead end rotation ensure direct-drive compatibility for standard fan blades. Featuring permanently lubricated bearings, this unit minimizes mechanical friction and eliminates the need for field oiling. This motor is a reliable drop-in replacement for refrigeration condenser fan motors and liquid-cooled systems where high-torque startup and continuous-duty operation are required. The cast iron construction provides thermal stability, making it an essential component for contractors maintaining thermal management systems.
Key Benefits
- Direct-Drive Efficiency: Optimized for high-static pressure environments requiring 1550 RPM.
- TEO Construction: The totally enclosed design protects the internal windings from ambient contaminants.
- Continuous Duty Rating: Engineered for 24/7 operation without thermal degradation.
- Maintenance-Free Design: High-grade lubrication is sealed within the bearings to prevent failure.
- Universal Mounting: Utilizes standard unit bearing footprints for rapid field replacement.
Common Questions
What are the mounting options for the US Motors 2135?
This shaded pole motor features standard rear tapped holes, allowing for easy integration into existing brackets or venturi rings found in commercial coolers.
Can I use this motor in a 115V application?
No, the 2135 unit bearing motor is specifically wound for 230Vac. Running this on a 115V circuit will cause high amperage and eventual winding failure.
Is the rotation reversible?
The Nidec 2135 is fixed at clockwise rotation (CWLE). Verify the pitch of your fan blade prior to installation to ensure proper airflow direction.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
