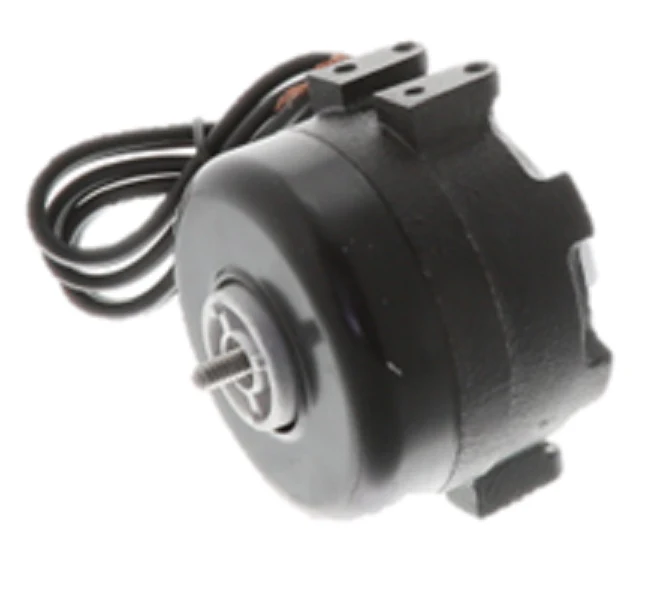

Nidec-US Motors 2108 Fan Motor
When you're out in the field servicing walk-in coolers or refrigerated display cases, you need a drop-in replacement that holds up under 24/7 operation. The Nidec-US Motors 2108 Fan Motor is a professional-grade shaded pole unit bearing fan motor engineered for maximum longevity in evaporator and condenser applications. Built with a rugged cast iron housing, this motor features a 9-watt output at 115Vac and runs at a consistent 1550 RPM, making it a reliable swap for many OEM refrigeration units. The totally enclosed enclosure (TEAO) ensures the internals stay protected from moisture and airborne debris, while the permanently lubricated bearing system eliminates the need for maintenance in hard-to-reach locations.
This 4-pole motor is impedance protected and supports all-angle operation, allowing for flexible mounting in horizontal or vertical configurations. The 1/4" threaded shaft and CW lead end rotation provide a standard fit for common fan blades. For a clean installation, the US Motors 2108 comes with a 24-inch cord set and a molded strain relief, ensuring the lead wires stay secured even in high-vibration commercial environments.
Key Benefits for Technicians:- Extended Service Life: The heavy-duty cast iron unit bearing design is built to outperform standard sleeve bearing motors in continuous-duty refrigeration cycles.
- Versatile Mounting: Designed for all-angle operation with a 1/4-20 threaded shaft, accommodating various fan blade depths and pitches.
- Direct OEM Replacement: Matches 9W 115V 1550 RPM specifications for a wide range of reach-in coolers and vending machine applications.
- Internal Protection: Impedance protection prevents winding burnout during locked-rotor conditions, increasing system reliability.
- Complete Setup: Includes a vibration dampener hub, washer, speed nut, and four mounting screws for a fast, professional install.
Is the rotation reversible on the US Motors 2108?
No, this specific model is fixed for CW lead end rotation. Professional installers should verify the fan blade pitch before mounting to ensure proper airflow direction.
Can this motor be used in both evaporator and condenser units?
Yes, the totally enclosed air over (TEAO) design is specifically rated for both the humid environment of an evaporator and the heat of a condenser, provided the 9-watt rating meets the system requirements.
Does it require a capacitor for startup?
No, as a shaded pole motor, the 2108 does not use a start or run capacitor, simplifying the electrical circuit and reducing points of failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
