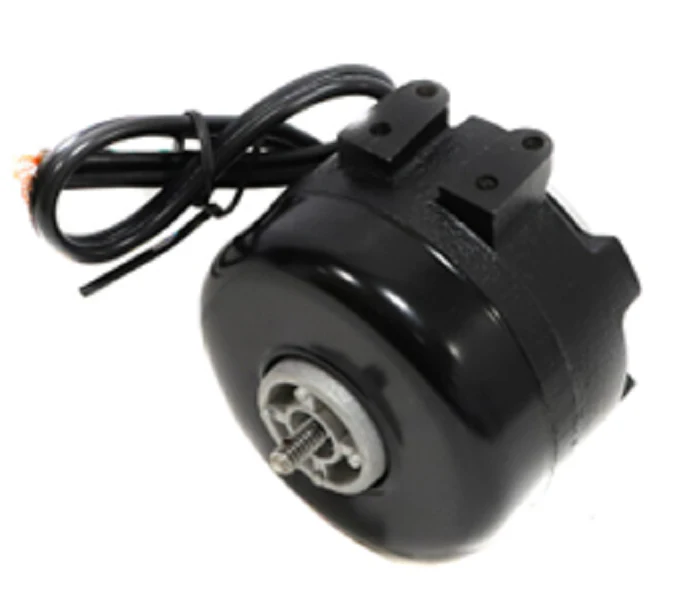

Nidec-US Motors 2102 Motor
The Nidec-US Motors 2102 is a commercial-grade shaded pole evaporator fan motor designed for reliable thermal management in reach-in coolers and refrigeration display cases. Operating at 115V with a fixed speed of 1550 RPM, this 2.5 Watt motor provides consistent airflow essential for maintaining precise temperature setpoints. Built with a totally enclosed air over (TEAO) enclosure, the unit protects internal windings from the high-moisture environments typical of evaporator coils. This motor features a standard CWLE (Clockwise Lead End) rotation and is engineered with unit bearing construction to ensure long-term lubrication and horizontal or vertical mounting versatility. For field technicians, the Nidec 2102 serves as a direct drop-in replacement for many OEM HVACR refrigeration motors, utilizing a 1/4-20 threaded shaft for easy blade attachment. Incorporating this cast iron motor into your service inventory ensures compatibility with a wide range of commercial refrigeration fan motor applications where low-wattage efficiency is required.
Key Benefits for the Contractor:- Direct OEM Compatibility: Designed to replace standard 2.5W unit bearing motors in most commercial refrigeration setups.
- Robust Construction: Features a cast iron housing for superior heat dissipation and structural integrity compared to stamped steel alternatives.
- All-Angle Mounting: The unit bearing design allows for reliable operation in any orientation, simplifying field installations.
- Consistent Performance: Fixed 1550 RPM speed ensures specific CFM requirements are met for evaporator defrost and cooling cycles.
What is the rotation of the US Motors 2102?
This model is configured for Clockwise Lead End (CWLE) rotation, which is the standard for most puller or pusher fan blade applications in reach-in units.
Can this motor be used in wet environments?
Yes, the TEAO enclosure and unit bearing design are specifically engineered to handle the high-humidity conditions found inside refrigeration evaporator sections.
Does this motor include the mounting bracket?
The motor features standard rear and side mounting holes, though specific hub or throat brackets should be retained from the original assembly for reuse.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
