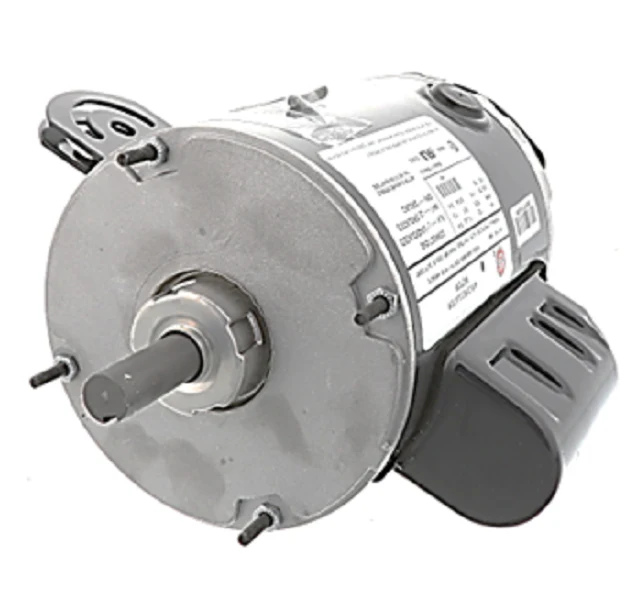

Nidec-US Motors 1940 Motor
The Nidec-US Motors 1940 is a heavy-duty, 1/2 HP Permanent Split Capacitor (PSC) motor designed specifically for demanding agricultural and ventilation applications. Engineered with a 48YZ NEMA frame size and a robust totally enclosed air over (TEAO) enclosure, this motor is built to withstand environments where dust and debris are prevalent. Operating at a nominal 825 RPM on 115Vac single-phase power, it delivers high-torque performance while pulling 6.4 Amps. The 5/8" diameter shaft and yoke mount configuration ensure a secure mechanical fit for large-diameter fans. This model features ball bearings for extended service life in vertical or horizontal orientations and includes a convenient cord and pull chain for manual localized control. As a reliable direct drive fan motor, it serves as a primary refrigeration motor replacement for systems requiring CCW lead end rotation and high-static pressure capability.
Key Technical Benefits
- Enhanced Durability: The TEAO enclosure prevents internal contamination, making it ideal for high-moisture or dusty agricultural settings.
- Optimized Airflow: Low-speed 825 RPM operation provides quiet, efficient airflow for large-scale ventilation units.
- Industrial Build: Features a 48YZ frame with a reinforced yoke mount for superior stability under vibration.
- Ease of Installation: Includes a factory-installed cord and pull chain, reducing field wiring time for manual exhaust fan setups.
- Reliable Bearings: Standard ball bearings support high radial loads and ensure smooth operation across a wide temperature range.
Common Questions
Can the US Motors 1940 be used in outdoor condensing units?
Yes, its TEAO design allows for operation in outdoor environments, provided the motor is situated within the airflow of the fan it is driving to maintain proper thermal cooling.
What is the difference between CCWLE and standard rotation?
This motor is fixed for CCW lead end rotation. Always verify the rotation of the existing fan blade to ensure the Nidec 1940 matches the required directional airflow of your specific housing.
Is a capacitor included with this motor?
As a Permanent Split Capacitor motor, it requires a specific microfarad rating to operate. While some configurations include the capacitor, technicians should always verify the MFD requirements on the nameplate during installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $421.38
-65%$421.38
$147.48Nidec-US Motors 1940 Motor
The Nidec-US Motors 1940 is a heavy-duty, 1/2 HP Permanent Split Capacitor (PSC) motor designed specifically for demanding agricultural and ventilation applications. Engineered with a 48YZ NEMA frame size and a robust totally enclosed air over (TEAO) enclosure, this motor is built to withstand environments where dust and debris are prevalent. Operating at a nominal 825 RPM on 115Vac single-phase power, it delivers high-torque performance while pulling 6.4 Amps. The 5/8" diameter shaft and yoke mount configuration ensure a secure mechanical fit for large-diameter fans. This model features ball bearings for extended service life in vertical or horizontal orientations and includes a convenient cord and pull chain for manual localized control. As a reliable direct drive fan motor, it serves as a primary refrigeration motor replacement for systems requiring CCW lead end rotation and high-static pressure capability.
Key Technical Benefits
- Enhanced Durability: The TEAO enclosure prevents internal contamination, making it ideal for high-moisture or dusty agricultural settings.
- Optimized Airflow: Low-speed 825 RPM operation provides quiet, efficient airflow for large-scale ventilation units.
- Industrial Build: Features a 48YZ frame with a reinforced yoke mount for superior stability under vibration.
- Ease of Installation: Includes a factory-installed cord and pull chain, reducing field wiring time for manual exhaust fan setups.
- Reliable Bearings: Standard ball bearings support high radial loads and ensure smooth operation across a wide temperature range.
Common Questions
Can the US Motors 1940 be used in outdoor condensing units?
Yes, its TEAO design allows for operation in outdoor environments, provided the motor is situated within the airflow of the fan it is driving to maintain proper thermal cooling.
What is the difference between CCWLE and standard rotation?
This motor is fixed for CCW lead end rotation. Always verify the rotation of the existing fan blade to ensure the Nidec 1940 matches the required directional airflow of your specific housing.
Is a capacitor included with this motor?
As a Permanent Split Capacitor motor, it requires a specific microfarad rating to operate. While some configurations include the capacitor, technicians should always verify the MFD requirements on the nameplate during installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
