Nidec-US Motors 19 Cradle Kit
The Nidec-US Motors 19 Cradle Kit is a heavy-duty resilient base cradle mount engineered specifically for high-integrity HVACR applications involving PSC and Shaded Pole motors. For technicians in the field, this kit provides a standardized solution for motors requiring a 3-inch shaft height and a 5-1/2 inch hub-to-hub length. The assembly is designed to drop into existing HVAC motor base configurations, ensuring rigid support while utilizing rubberized mounting principles to suppress harmonic resonance and mechanical noise in air handling units.

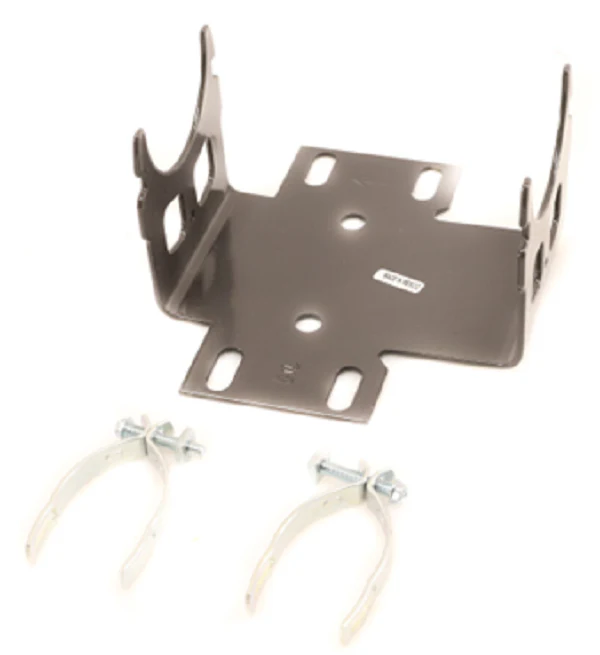

This US Motors mounting kit includes a high-gauge steel cradle base and two precision-engineered base clamps. It is built to accommodate a 2-1/2 inch hub ring diameter, making it a reliable choice for direct drive blower motor replacements and system retrofits where OEM vibration isolation is critical. By maintaining strict NEMA dimension standards, the Nidec 19 Cradle Kit simplifies motor mount installation, allowing contractors to secure 3.3-inch or 5.6-inch diameter motors with minimal field adjustment.
Key Benefits- Resilient Mounting System: Reduces vibration and operational noise in residential and commercial air handlers.
- Universal Compatibility: Fits standard fractional horsepower PSC and shaded pole motors with 2.5" hub diameters.
- Durable Construction: Heavy-duty steel components withstand high-torque start-ups and continuous thermal cycling.
- Precise Alignment: Maintains the critical 3" shaft centerline height for proper pulley and belt alignment.
- What motor types are compatible? This kit is specifically designed for general-purpose HVACR motors, particularly PSC and shaded pole designs used in blowers.
- Are hub rings included? This kit typically includes the cradle and clamps; always verify if your motor has pre-installed 2-1/2" hub rings or if they must be sourced separately.
- Does this fit 5.6-inch diameter motors? Yes, provided the hub-to-hub length matches the 5.5" (5-1/2") specification of this mount.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
