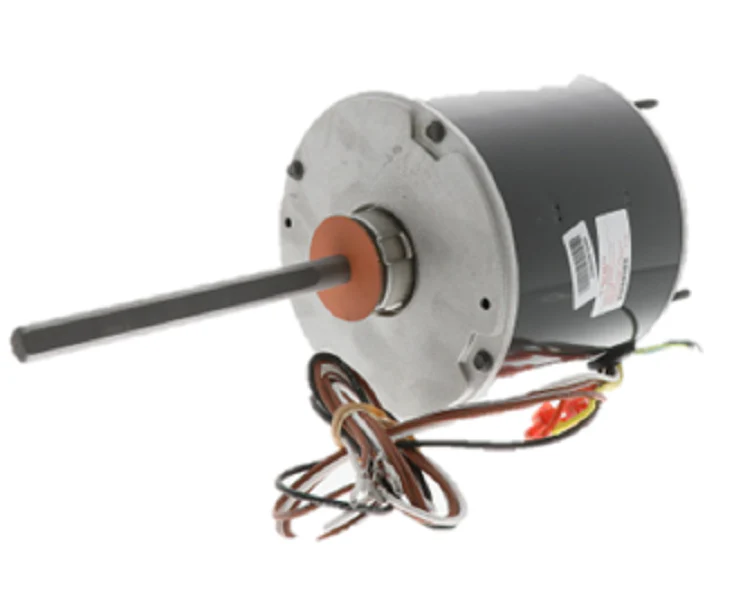

Nidec-US Motors 1880 Motor
The Nidec-US Motors 1880 is a high-efficiency permanent split capacitor motor engineered specifically for technical condenser fan motor replacement in demanding HVACR applications. Built with a 48Y NEMA frame size, this 1/4 HP condenser motor operates at 460Vac and features a low-speed 825 RPM profile, making it ideal for units requiring high torque with reduced noise levels. The totally enclosed air over (TEAO) enclosure and high-grade ball bearings ensure the internal components are protected from environmental debris and moisture, a critical requirement for exterior rooftop or ground-level installations. Its reversible rotation capability and stud or band mount options provide maximum field flexibility for contractors. This unit draws 1.0 Amps and includes a 1/2" diameter shaft, ensuring standard compatibility with existing fan blades and mounting brackets. For a successful install, verify capacitor ratings to ensure optimal 460V HVAC motor performance and long-term HVAC motor efficiency.
Key Benefits- All-Angle Mounting: Includes extra-long studs and a 48Y frame for easy integration into standard HVAC mounting brackets.
- TEAO Protection: The totally enclosed air over design prevents dust and rain from entering the motor windings.
- Precision Speed Control: The 825 RPM rating ensures consistent airflow across condenser coils without excessive vibration.
- Field Reversibility: Simple lead-change rotation allows this single motor to replace both clockwise and counter-clockwise OEM parts.
What capacitor is required for the US Motors 1880?
This motor typically requires a 5.0 MFD / 370V or 440V run capacitor; always check the nameplate on the specific unit to confirm current requirements before installation.
Can this motor be used in 230V applications?
No, the 1880 is purely a 460V condenser motor. Applying lower voltage will result in motor failure and insufficient torque.
Is this a direct replacement for 48-frame motors?
Yes, the 48Y frame is compatible with most standard 48-frame mounts, though the "Y" indicates a slightly modified mounting variation that typically includes longer mounting studs.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $311.14
-65%$311.14
$108.90Nidec-US Motors 1880 Motor
The Nidec-US Motors 1880 is a high-efficiency permanent split capacitor motor engineered specifically for technical condenser fan motor replacement in demanding HVACR applications. Built with a 48Y NEMA frame size, this 1/4 HP condenser motor operates at 460Vac and features a low-speed 825 RPM profile, making it ideal for units requiring high torque with reduced noise levels. The totally enclosed air over (TEAO) enclosure and high-grade ball bearings ensure the internal components are protected from environmental debris and moisture, a critical requirement for exterior rooftop or ground-level installations. Its reversible rotation capability and stud or band mount options provide maximum field flexibility for contractors. This unit draws 1.0 Amps and includes a 1/2" diameter shaft, ensuring standard compatibility with existing fan blades and mounting brackets. For a successful install, verify capacitor ratings to ensure optimal 460V HVAC motor performance and long-term HVAC motor efficiency.
Key Benefits- All-Angle Mounting: Includes extra-long studs and a 48Y frame for easy integration into standard HVAC mounting brackets.
- TEAO Protection: The totally enclosed air over design prevents dust and rain from entering the motor windings.
- Precision Speed Control: The 825 RPM rating ensures consistent airflow across condenser coils without excessive vibration.
- Field Reversibility: Simple lead-change rotation allows this single motor to replace both clockwise and counter-clockwise OEM parts.
What capacitor is required for the US Motors 1880?
This motor typically requires a 5.0 MFD / 370V or 440V run capacitor; always check the nameplate on the specific unit to confirm current requirements before installation.
Can this motor be used in 230V applications?
No, the 1880 is purely a 460V condenser motor. Applying lower voltage will result in motor failure and insufficient torque.
Is this a direct replacement for 48-frame motors?
Yes, the 48Y frame is compatible with most standard 48-frame mounts, though the "Y" indicates a slightly modified mounting variation that typically includes longer mounting studs.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
