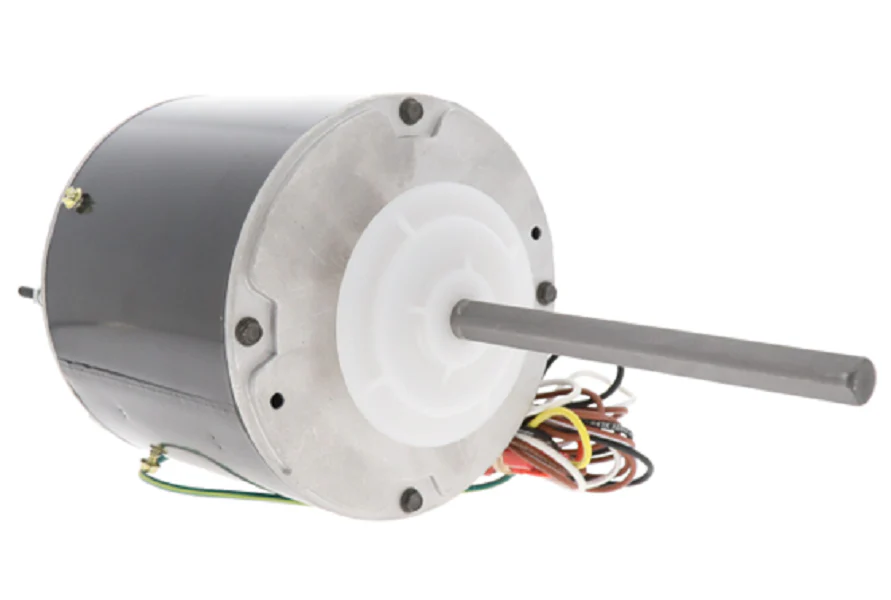

Nidec-US Motors 1875H Motor
The Nidec-US Motors 1875H is a high-performance, totally enclosed air over (TEAO) condensing unit fan motor designed for demanding HVACR applications. Operating at 208-230V and a low-speed 825 RPM, this 48-frame motor features a multi-horsepower design, effectively covering 1/3 HP to 1/5 HP requirements. This versatility allows technicians to reduce truck stock while maintaining peak system performance. Built with a Permanent Split Capacitor (PSC) design and thermal overload protection, the 1875H ensures reliable operation in high-ambient conditions typical of outdoor condenser environments. The all-angle mounting capability, supported by double-sealed ball bearings and extended mounting studs, provides flexibility for various fan-blade configurations and housing orientations. With its reversible rotation and 4-microfarad capacitor requirement (sold separately), this US Motors HVAC replacement motor delivers consistent torque and efficient heat dissipation for residential and light commercial cooling systems.
Key Benefits for Technicians:
- Multi-HP Versatility: Replaces both 1/3 HP and 1/5 HP ratings, streamlining inventory for service calls.
- High-Ambient Reliability: TEAO enclosure and Class B insulation protect internal windings from moisture and debris.
- Simplified Installation: Features all-angle mounting and standard 1/2-inch diameter shaft for broad compatibility.
- Quiet Operation: The 8-pole 825 RPM low speed reduces acoustic profile and vibration in sensitive residential areas.
- Reversible Rotation: Simple lead reversal adapts to both CW and CCW airflow requirements in the field.
Common Questions & Technical Support:
How do I change the rotation on the 1875H?
Rotation is easily reversed by swapping the polarized plug connectors located on the motor's lead wires prior to installation.
What capacitor is required for this motor?
This motor typically requires a 5.0 MFD / 370V capacitor; however, always verify the specific rating on the nameplate to ensure proper phase shift and starting torque.
Can this motor be mounted shaft-up or shaft-down?
Yes, the Nidec 1875H is engineered with ball bearings and lead exits that allow for 360-degree orientation, including vertical shaft-up or shaft-down applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
