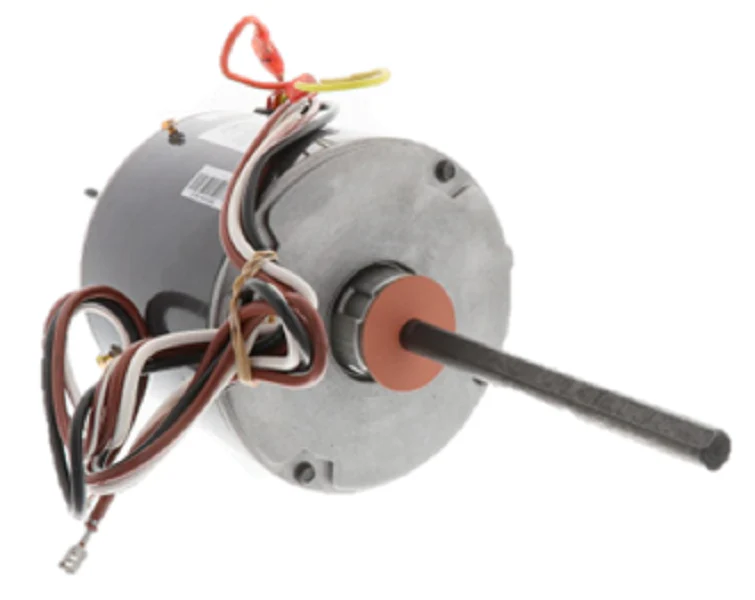

Nidec-US Motors 1875 Motor
The Nidec-US Motors 1875 is a professional-grade condenser fan motor designed for high-static residential and commercial HVAC applications. This multi-horsepower motor operates at both 1/3 HP and 1/5 HP ratings, providing versatile performance for various airflow requirements. Engineered as a permanent split capacitor motor (PSC), it utilizes a 208-230V single-phase input to deliver a steady 825 RPM. The TEAO (Totally Enclosed Air Over) enclosure ensures the internal windings remain protected from environmental debris while relying on the condenser's airflow for thermal management. Built on a 48Y NEMA frame, this unit features a 1/2" diameter shaft and a stud mount configuration for secure installation in tight compartments. As the direct replacement for the 15C75, it simplifies field retrofits. The reversible rotation capability and self-aligning sleeve bearings allow for broad compatibility across multiple OEM brands, ensuring reliable operation in demanding outdoor environments.
Key Benefits
- Dual Horsepower Compatibility: Operates at 1/3 HP and 1/5 HP to reduce the number of truck-stock motors needed for service calls.
- Enhanced Durability: The TEAO enclosure and sleeve bearings are engineered for the high-duty cycles of outdoor condensing units.
- Flexible Installation: Features reversible rotation and a standard 48-frame stud mount to accommodate various fan blade pitches and housing designs.
- Direct OEM Replacement: Specifically designed to replace the legacy US Motors 15C75 without requiring mounting modifications.
Common Questions
Is this motor compatible with 460V systems?
No, this model is specifically rated for 208-230Vac operation. Using it with higher voltage will result in immediate winding failure.
Does this motor include the run capacitor?
Standard practice dictates replacing the motor capacitor during installation; check the nameplate for the specific MFD rating required for your lead configuration.
Can I use this in an upright or belly-band mount?
While technically a stud mount motor, the 48Y frame can often accommodate a belly band, provided the totally enclosed air over cooling requirements are met.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
1875 is the cross of Fasco D796
Original: $165.93
-65%$165.93
$58.08Nidec-US Motors 1875 Motor
The Nidec-US Motors 1875 is a professional-grade condenser fan motor designed for high-static residential and commercial HVAC applications. This multi-horsepower motor operates at both 1/3 HP and 1/5 HP ratings, providing versatile performance for various airflow requirements. Engineered as a permanent split capacitor motor (PSC), it utilizes a 208-230V single-phase input to deliver a steady 825 RPM. The TEAO (Totally Enclosed Air Over) enclosure ensures the internal windings remain protected from environmental debris while relying on the condenser's airflow for thermal management. Built on a 48Y NEMA frame, this unit features a 1/2" diameter shaft and a stud mount configuration for secure installation in tight compartments. As the direct replacement for the 15C75, it simplifies field retrofits. The reversible rotation capability and self-aligning sleeve bearings allow for broad compatibility across multiple OEM brands, ensuring reliable operation in demanding outdoor environments.
Key Benefits
- Dual Horsepower Compatibility: Operates at 1/3 HP and 1/5 HP to reduce the number of truck-stock motors needed for service calls.
- Enhanced Durability: The TEAO enclosure and sleeve bearings are engineered for the high-duty cycles of outdoor condensing units.
- Flexible Installation: Features reversible rotation and a standard 48-frame stud mount to accommodate various fan blade pitches and housing designs.
- Direct OEM Replacement: Specifically designed to replace the legacy US Motors 15C75 without requiring mounting modifications.
Common Questions
Is this motor compatible with 460V systems?
No, this model is specifically rated for 208-230Vac operation. Using it with higher voltage will result in immediate winding failure.
Does this motor include the run capacitor?
Standard practice dictates replacing the motor capacitor during installation; check the nameplate for the specific MFD rating required for your lead configuration.
Can I use this in an upright or belly-band mount?
While technically a stud mount motor, the 48Y frame can often accommodate a belly band, provided the totally enclosed air over cooling requirements are met.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
1875 is the cross of Fasco D796
