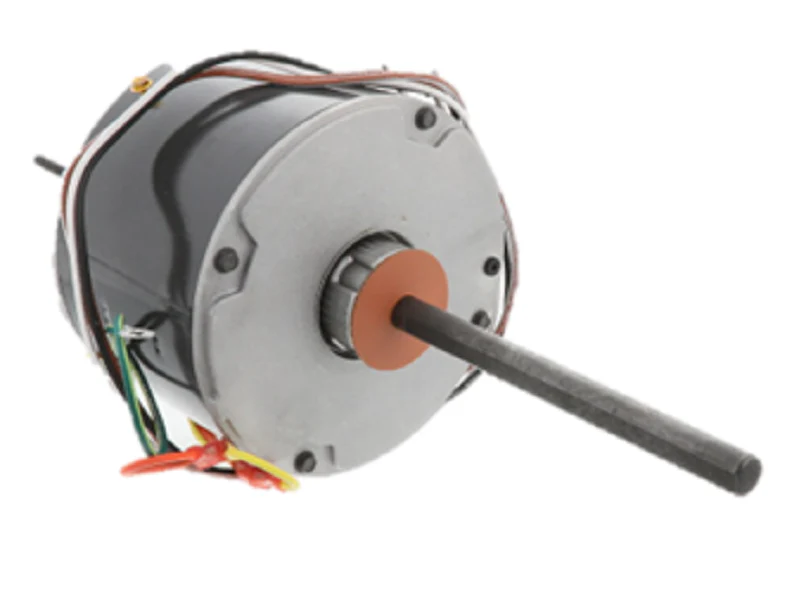

Nidec-US Motors 1872 Motor
The Nidec-US Motors 1872 is a professional-grade 1/8 HP condenser fan motor designed for high-demand residential and commercial HVACR applications. Built with a 48Y NEMA frame size, this 825 RPM condenser motor operates on 208-230V single phase power, drawing 0.78 amps. This Permanent Split Capacitor (PSC) motor features a Totally Enclosed Air Over (TEAO) enclosure, making it ideal for outdoor condensing units where protection from environmental debris is critical. The design includes an all-angle thrust system with self-aligning sleeve bearings, allowing for flexible mounting configurations. For simplified field installation, the unit provides reversible rotation and extended stud mounting with 30-inch leads. Engineered for reliability in extreme conditions, it maintains a 60°C (140°F) ambient temperature rating and includes an automatic reset thermal overload protector to prevent winding failure during high-head pressure events or blocked airflow scenarios.
Key Benefits- Universal Flexibility: Features reversible rotation and a 1/2" diameter x 4.5" long flat shaft to match various OEM fan blade requirements.
- Enhanced Durability: The totally enclosed air over (TEAO) design and Class B insulation ensure reliable performance in high-ambient environments.
- Contractor-Friendly Install: Equipped with extended studs, hubless lead ends, and drain holes on both ends for vertical or horizontal positioning.
- Energy Efficient: PSC motor technology optimizes electrical consumption while providing the necessary torque for 1/8 HP applications.
What capacitor is required for the US Motors 1872?
This motor typically requires a 5 MFD / 370V capacitor for proper start and run torque (check the motor nameplate for specific run capacitor requirements).
Can this motor be used in Rheem or Ruud units?
Yes, the shell includes four mounting holes specifically designed to accommodate Rheem and Ruud mounting patterns, in addition to standard stud mounting.
Is this motor suitable for outdoor use?
Specifically designed as a condenser fan motor, the TEAO enclosure and built-in water shedding features like drain holes make it suitable for outdoor HVAC units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
