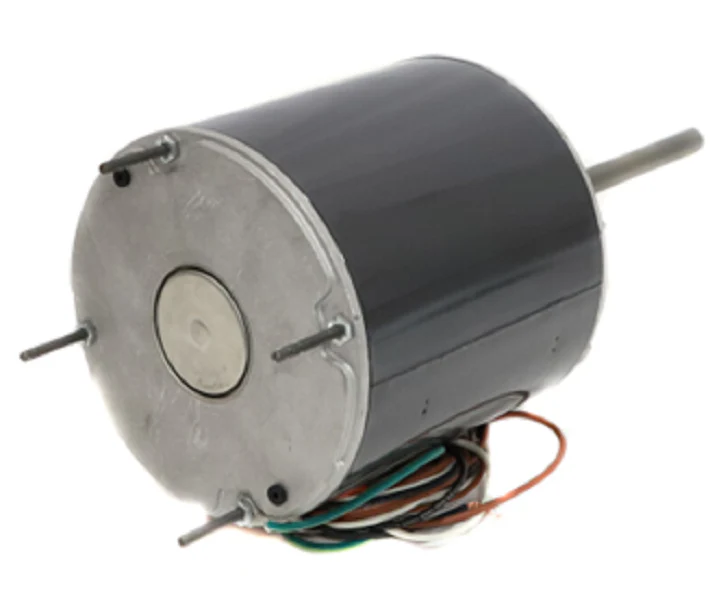

Nidec-US Motors 1870H Motor
The Nidec US Motors 1870H is a heavy-duty 1/2 HP 825 RPM condenser fan motor engineered for high-static pressure demands in demanding HVACR applications. Operating on 208-230V single phase power, this permanent split capacitor (PSC) motor utilizes a 48Y frame with an all-angle mounting configuration, making it a versatile drop-in replacement for professional technicians. The TEAO (Totally Enclosed Air Over) enclosure ensures maximum protection against moisture and debris, while the Class B insulation allows for reliable operation in high-ambient environments. Designed for reversible rotation, the 1870H eliminates the need for stocking multiple SKUs, providing a critical solution for condenser fan repair. Its automatic thermal overload protection prevents winding failure during voltage fluctuations or restricted airflow. For contractors, this 1/2 HP motor delivers the high-torque performance required to maintain head pressure and system efficiency in residential and light commercial units.
Key Performance Benefits
- Reversible rotation via simple lead reversal simplifies inventory and installation logistics.
- All-angle sleeve bearings allow for vertical shaft-up or shaft-down mounting without premature wear.
- Automatic reset thermal protector safeguards the internal windings from overheating conditions.
- NEMA 48Y frame features extended thru-bolts and a 1/2-inch diameter shaft for secure mechanical coupling.
- High-efficiency PSC design reduces amperage draw compared to shaded-pole alternatives, lowering operational costs.
Common Contractor Questions
What is the correct capacitor for the 1870H motor?
This motor requires a 10.0 MFD / 370V run capacitor (sold separately) to maintain proper torque and efficiency.
Can this motor replace an 825 RPM AO Smith or Emerson model?
Yes, provided the 1/2 HP rating, 48Y frame size, and 208-230V specifications match your existing unit.
How do I change the rotation on this Nidec motor?
Rotation is easily reversed by swapping the two external leads as indicated on the wiring diagram located on the motor shell.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
