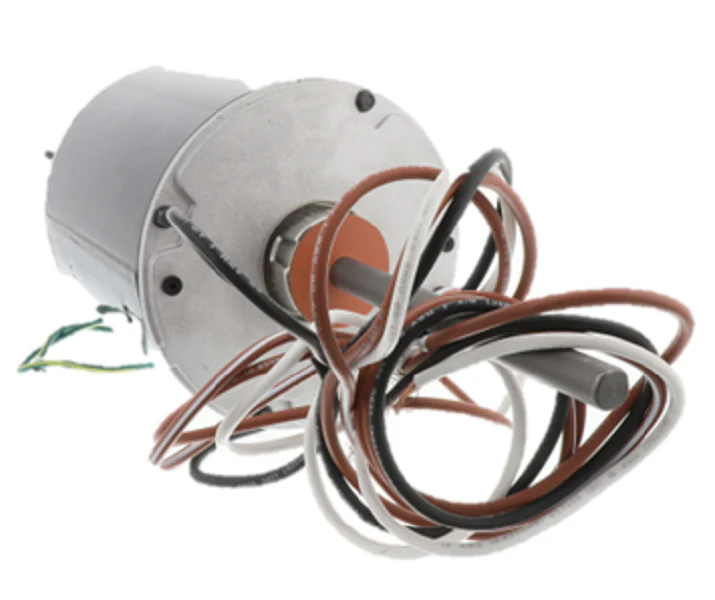

Nidec-US Motors 1868H Condenser Motor
The Nidec-US Motors 1868H is a heavy-duty, 3/4 HP condenser fan motor engineered for high-demand outdoor HVAC applications. Operating at 1075 RPM with a 208-230V single-phase input, this Permanent Split Capacitor motor draws 4.7 Amps and features a 48Y NEMA frame size. Built with a Totally Enclosed Air Over (TEAO) enclosure and high-grade ball bearings, it is designed to handle high ambient temperatures while maintaining internal thermal protection. This multi-mount motor offers versatile installation via hub or stud mounting, making it a reliable direct replacement condenser motor for various residential and light commercial units. Whether you are dealing with high static pressure or extreme weather cycles, the US Motors 1868H provides the consistent torque and thermal stability required for professional-grade repairs. Ensure your PSC capacitor matches the rated 10 MFD/370V requirement to maintain peak efficiency and prevent premature winding failure.
- All-Angle Mounting: The 48Y frame supports both hub and stud mounting configurations, facilitating quick installation in various chassis designs.
- Enhanced Durability: Equipped with dual-shielded ball bearings and a TEAO enclosure to protect against moisture ingress and airborne contaminants.
- Voltage Versatility: Designed for 208-230Vac operation, ensuring compatibility with standard residential and commercial cooling systems.
- Class B Insulation: Rated for high-temperature environments, reducing the risk of burnout during peak summer heat.
Common Questions
What capacitor is required for the 1868H?
Following standard NEMA requirements for 3/4 HP PSC motors, this unit typically requires a 10 MFD 370V run capacitor for proper phase shift and torque.
Can this motor be mounted shaft-down or shaft-up?
Yes, the ball bearing system and 48Y frame design allow for all-angle mounting, making it suitable for both horizontal and vertical discharge condensers.
How do I verify if this 48Y frame fits my existing shroud?
Check the bolt circle on your existing bracket; the 1868H features standard 48-frame stud spacing and a consistent hub diameter for universal bracket compatibility.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $133.01
-65%$133.01
$46.55Nidec-US Motors 1868H Condenser Motor
The Nidec-US Motors 1868H is a heavy-duty, 3/4 HP condenser fan motor engineered for high-demand outdoor HVAC applications. Operating at 1075 RPM with a 208-230V single-phase input, this Permanent Split Capacitor motor draws 4.7 Amps and features a 48Y NEMA frame size. Built with a Totally Enclosed Air Over (TEAO) enclosure and high-grade ball bearings, it is designed to handle high ambient temperatures while maintaining internal thermal protection. This multi-mount motor offers versatile installation via hub or stud mounting, making it a reliable direct replacement condenser motor for various residential and light commercial units. Whether you are dealing with high static pressure or extreme weather cycles, the US Motors 1868H provides the consistent torque and thermal stability required for professional-grade repairs. Ensure your PSC capacitor matches the rated 10 MFD/370V requirement to maintain peak efficiency and prevent premature winding failure.
- All-Angle Mounting: The 48Y frame supports both hub and stud mounting configurations, facilitating quick installation in various chassis designs.
- Enhanced Durability: Equipped with dual-shielded ball bearings and a TEAO enclosure to protect against moisture ingress and airborne contaminants.
- Voltage Versatility: Designed for 208-230Vac operation, ensuring compatibility with standard residential and commercial cooling systems.
- Class B Insulation: Rated for high-temperature environments, reducing the risk of burnout during peak summer heat.
Common Questions
What capacitor is required for the 1868H?
Following standard NEMA requirements for 3/4 HP PSC motors, this unit typically requires a 10 MFD 370V run capacitor for proper phase shift and torque.
Can this motor be mounted shaft-down or shaft-up?
Yes, the ball bearing system and 48Y frame design allow for all-angle mounting, making it suitable for both horizontal and vertical discharge condensers.
How do I verify if this 48Y frame fits my existing shroud?
Check the bolt circle on your existing bracket; the 1868H features standard 48-frame stud spacing and a consistent hub diameter for universal bracket compatibility.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
