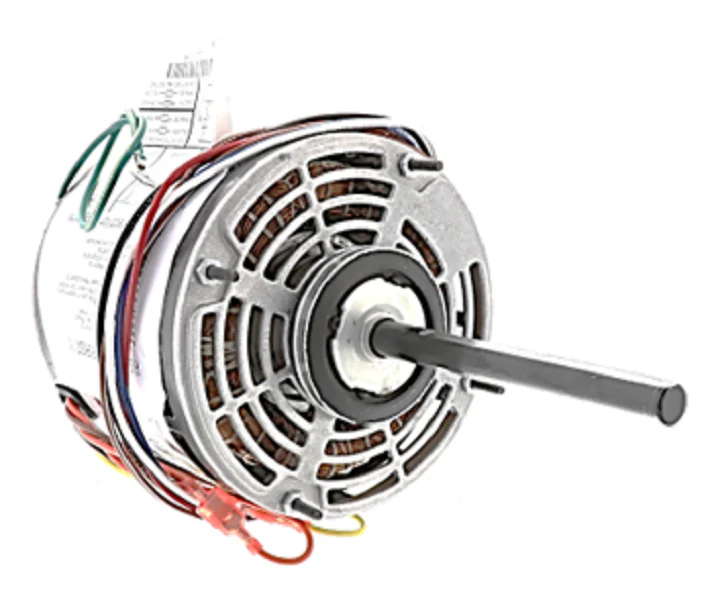

Nidec-US Motors 1865 Motor
The Nidec US Motors 1865 is a professional-grade 1/2 HP blower motor designed for reliable performance in residential and commercial direct drive fan applications. Engineered as a 115V 3-speed motor, this Permanent Split Capacitor (PSC) unit provides versatile airflow control across low, medium, and high settings to meet specific HVAC system demands. Featuring a NEMA 48Y frame with an Open Air Over (OAO) enclosure, this motor is built for continuous duty and utilizes self-aligning ball bearings with an all-angle thrust system, making it suitable for shaft-up, shaft-down, or horizontal mounting.
This reversibly rotating motor simplifies inventory by replacing multiple fixed-rotation models. With a standard 1075 RPM base speed and a 1/2" diameter shaft, the 1865 is a go-to choice for contractors replacing failed indoor blower motors. The unit draws 6.5 Amps and includes automatic reset thermal overload protection to prevent winding failure during high-static conditions. Installation is flexible via stud, band, or hub mounting, and the 2.5" diameter hub rings are included to ensure a proper fit in existing blower housings.
Key Benefits- Versatile Multi-Speed Output: Three distinct speed taps allow for precise CFM adjustment in various furnace and air handler configurations.
- Universal Mounting Options: Supports all-angle mounting via extended studs, belly band, or hub rings for seamless field replacement.
- Extended Service Life: Features high-quality ball bearings and Class B insulation rated for 140°F (60°C) ambient environments.
- Simplified Service: Reversible rotation allows for quick adaptation to clockwise or counter-clockwise requirements without modifying the housing.
What size capacitor does the US Motors 1865 require?
This motor typically requires a 10 MFD / 370V run capacitor (sold separately) for optimal torque and energy efficiency.
Can this motor be used in outdoor condenser units?
While it is an OAO enclosure, it is specifically designed for direct drive blower applications where the motor is protected from direct weather exposure within the cabinet.
How do I change the rotation on this motor?
Rotation is easily reversed by following the wiring diagram on the motor nameplate, typically involving the swapping of two lead connectors.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
