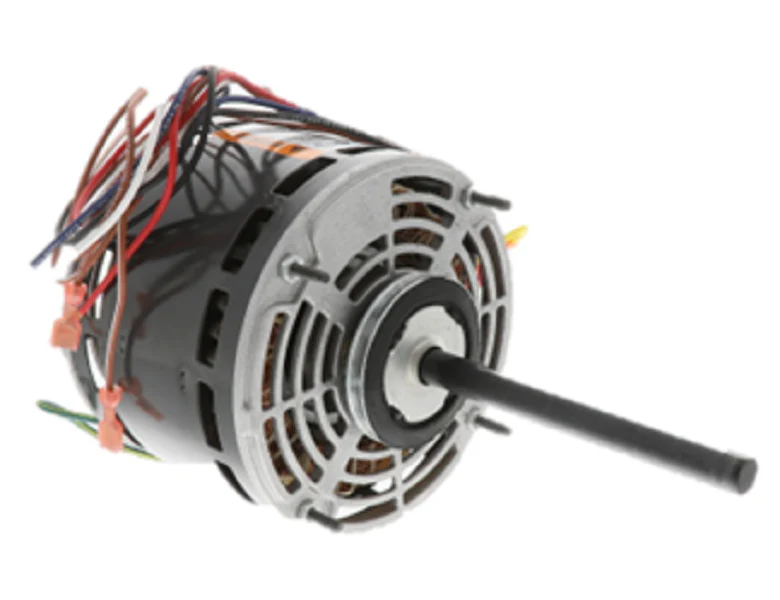

Nidec-US Motors 1863 Motor
The Nidec-US Motors 1863 is a heavy-duty 1/4 HP direct drive blower motor designed for high-performance residential and commercial HVAC applications. Operating at 115V and 1075 RPM, this PSC (Permanent Split Capacitor) motor offers 3-speed versatility to precision-match system airflow requirements. Built on a 48Y NEMA frame, the unit features a 1/2" x 5" shaft with a flat and is reversible for CCWLE or CWLE rotation, providing maximum field flexibility. The Open Air Over (OAO) enclosure and Class B insulation ensure efficient heat dissipation and reliable operation in high-ambient environments up to 40°C. Designed for contractors, it supports multiple installation configurations including stud, band, or hub mounting with 2.5" diameter hub rings included. The motor is equipped with internal automatic reset thermal overload protection and self-aligning ball bearings to handle all-angle thrust loads, making it a rugged choice for service replacements in furnaces and air handlers.
Key Benefits- Universal Mounting Flexibility: Supports stud, belly band, and hub ring mounting to fit nearly any furnace blower housing.
- Multi-Speed Customization: Three-speed taps allow for optimized airflow control in heating and cooling modes.
- Field Reversible: Simple lead reversal adapts the rotation to match the original equipment manufacturer (OEM) specs.
- Industrial Grade Build: Features self-aligning bearings and class B insulation for extended service life in demanding duty cycles.
- Standardized Frame: The 5.6" diameter 48Y frame ensures a drop-in replacement blower motor for major HVAC brands.
Does this motor include the capacitor?
This motor requires a 7.5 MFD / 370V capacitor for operation. Please verify if your existing capacitor matches these specs or purchase a new one to ensure proper starting torque.
Can this motor be mounted in any orientation?
Yes, the self-aligning ball bearing system and all-angle thrust design allow for shaft-up, shaft-down, or horizontal mounting.
Is this a suitable replacement for my 1/4 HP furnace fan?
If your original motor is a 115V PSC type with a 48 frame and 1075 RPM rating, the Nidec 1863 is likely a compatible match across multiple brands including Emerson and Century.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $125.62
-65%$125.62
$43.97Nidec-US Motors 1863 Motor
The Nidec-US Motors 1863 is a heavy-duty 1/4 HP direct drive blower motor designed for high-performance residential and commercial HVAC applications. Operating at 115V and 1075 RPM, this PSC (Permanent Split Capacitor) motor offers 3-speed versatility to precision-match system airflow requirements. Built on a 48Y NEMA frame, the unit features a 1/2" x 5" shaft with a flat and is reversible for CCWLE or CWLE rotation, providing maximum field flexibility. The Open Air Over (OAO) enclosure and Class B insulation ensure efficient heat dissipation and reliable operation in high-ambient environments up to 40°C. Designed for contractors, it supports multiple installation configurations including stud, band, or hub mounting with 2.5" diameter hub rings included. The motor is equipped with internal automatic reset thermal overload protection and self-aligning ball bearings to handle all-angle thrust loads, making it a rugged choice for service replacements in furnaces and air handlers.
Key Benefits- Universal Mounting Flexibility: Supports stud, belly band, and hub ring mounting to fit nearly any furnace blower housing.
- Multi-Speed Customization: Three-speed taps allow for optimized airflow control in heating and cooling modes.
- Field Reversible: Simple lead reversal adapts the rotation to match the original equipment manufacturer (OEM) specs.
- Industrial Grade Build: Features self-aligning bearings and class B insulation for extended service life in demanding duty cycles.
- Standardized Frame: The 5.6" diameter 48Y frame ensures a drop-in replacement blower motor for major HVAC brands.
Does this motor include the capacitor?
This motor requires a 7.5 MFD / 370V capacitor for operation. Please verify if your existing capacitor matches these specs or purchase a new one to ensure proper starting torque.
Can this motor be mounted in any orientation?
Yes, the self-aligning ball bearing system and all-angle thrust design allow for shaft-up, shaft-down, or horizontal mounting.
Is this a suitable replacement for my 1/4 HP furnace fan?
If your original motor is a 115V PSC type with a 48 frame and 1075 RPM rating, the Nidec 1863 is likely a compatible match across multiple brands including Emerson and Century.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
