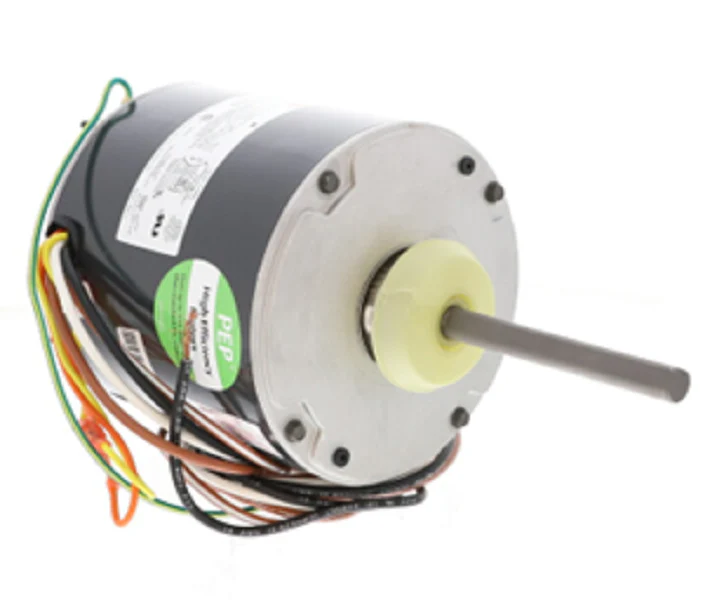

Nidec-US Motors 1862PEP Motor
The Nidec US Motors 1862PEP is a professional-grade PSC condenser fan motor designed for demanding HVACR applications requiring a 1/2 HP, 1130 RPM output. Engineered with a Totally Enclosed Air Over (TEAO) enclosure, this motor is built to withstand outdoor environmental stressors while maintaining optimal thermal dissipation. It operates on a 208-230V single-phase power supply and features Class B insulation for reliable performance under high ambient temperatures. The permanently lubricated ball bearings ensure quiet operation and a long service life, reducing the need for field maintenance. With a reversible rotation design and a standard 48-frame diameter, this 1130 RPM motor provides a versatile solution for direct-drive fan applications. Technicians should ensure the use of a 10 MFD / 370V capacitor (sold separately) to maintain specified torque and amperage draw. Its high-torque startup is ideal for heavy fan blades, ensuring efficient airflow across the coils in residential and light commercial AC units.
- Automatic Reset Thermal Overload Protector: Prevents motor burnout during high-stress cycles or restricted airflow conditions.
- All-Angle Mounting: Versatile installation options for belly band or stud mounting configurations.
- TEAO Enclosure: Protects internal windings and components from dust, moisture, and debris in outdoor environments.
- Lead End Plugs: Includes drainage plugs to allow moisture to escape, critical for vertical shaft-up or shaft-down positioning.
- Standard 1/2" Diameter Shaft: Flat-keyed shaft ensures secure seating for a wide variety of fan hub sizes.
Common Questions
What capacitor is required for the 1862PEP?
This motor requires a 10 MFD/370V run capacitor for proper operation. Failure to use the correct capacitance can lead to overheating or winding failure.
Is this motor reversible in the field?
Yes, the 1862PEP features simple reversing leads, allowing you to match the rotation of the existing fan blade (CW or CCW) during installation.
Can this motor replace a lower horsepower unit?
While a 1/2 HP motor can often replace a 1/3 HP unit if dimensions match, it is essential to verify that the RPM (1130) and frame size are identical to avoid overloading the blades or damaging the system.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
