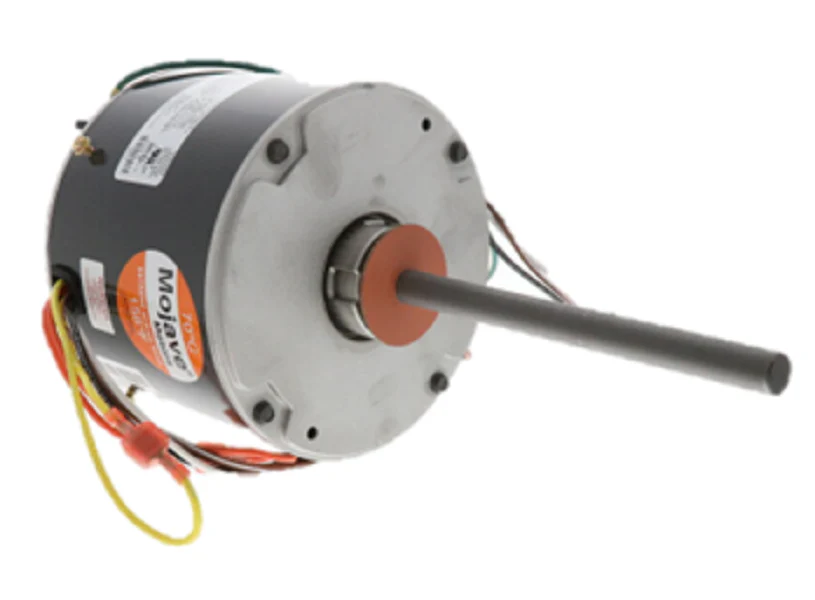

Nidec-US Motors 1861H Condenser Motor
The Nidec-US Motors 1861H Condenser Motor is a high-reliability 1/3 HP condenser fan motor engineered for demanding outdoor HVAC environments. Operating at 1075 RPM on a 208-230V single-phase power supply, this Permanent Split Capacitor (PSC) motor is built on a standard 48Y NEMA frame for broad HVAC replacement motor compatibility. It features a Totally Enclosed Air Over (TEAO) enclosure to protect internal windings from contamination while leveraging airflow for thermal management. The integration of 6201 ball bearings ensures extended service life and smooth operation under high vertical or horizontal thrust loads. For versatile field installation, the 1861H supports both stud and band mounting configurations. With a 2.1 Amp draw, this unit provides a precise balance of torque and energy efficiency, making it a staple for contractors maintaining residential and light commercial condensing units.
Technical Performance Benefits
- Broad Replacement Compatibility: Standard 48Y frame and 1075 RPM rating allow this universal condenser motor to replace most OEM 1/3 HP units.
- Durable TEAO Construction: The Totally Enclosed Air Over design prevents dust and moisture ingress, critical for longevity in coastal or high-debris areas.
- Precision Bearings: Equipped with dual 6201 ball bearings to minimize friction and thermal stress during continuous 24/7 cycles.
- Flexible Installation: Features extended mounting studs and a resilient 48-frame body for stud/band mount versatility.
- Thermoset Insulation: Engineered with high-grade insulation to handle elevated ambient temperatures typical of outdoor condenser environments.
Common Questions
What capacitor is required for the 1861H motor?
This 1/3 HP PSC motor typically requires a 5 MFD / 370V run capacitor for optimal performance and proper phase shift.
Can this motor be mounted shaft-up or shaft-down?
Yes, the 6201 ball bearing system and moisture sheds allow for multi-positional mounting, including shaft-up, shaft-down, or horizontal orientations.
Is the rotation reversible on this unit?
Standard US Motors 1861H models are often electrically reversible via simple plug-and-play lead reversal, enabling use in both CW and CCW applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
