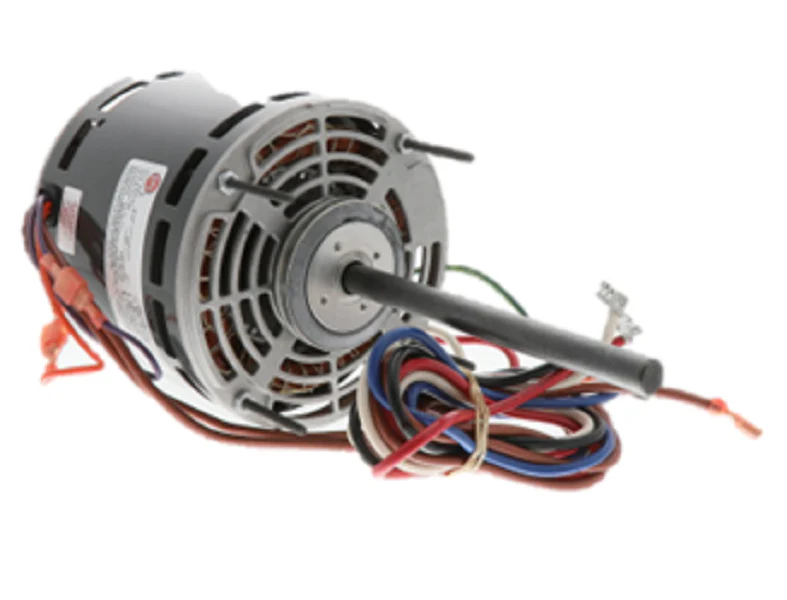

Nidec-US Motors 1700 Motor
The Nidec-US Motors 1700 is an industry-standard direct drive blower motor engineered for consistent performance in residential and light commercial air handling units. Operating at 208-230Vac with a robust 1HP output, this PSC motor features a three-speed design, allowing technicians to fine-tune airflow requirements to match specific system static pressures. The 48Y NEMA frame size and 1/2" shaft make it a versatile HVAC replacement motor for a variety of OEM configurations. Built with self-aligning ball bearings and an open air over (OAO) enclosure, the motor is designed for optimal cooling and long-term durability in the blower compartment. Its reversible rotation and flexible ring or stud mount options ensure a straightforward installation for contractors managing diverse service calls.
Key Benefits- Multi-Speed Versatility: The 3-speed configuration provides precise control over CFMs, essential for maintaining system efficiency and dehumidification profiles.
- Rugged Construction: Equipped with self-aligning ball bearings to handle higher thrust loads and extend the service life of the blower motor.
- Universal Mounting: Features a 48Y frame with both ring and stud mounting capabilities to accommodate various hvac burner and blower housing designs.
- High Operational Efficiency: The 1HP 1625 RPM motor design optimizes power consumption while delivering high-torque performance under load.
- Contractor Friendly: Simplified reversible rotation wiring allows for quick adaptation to clockwise or counter-clockwise requirements in the field.
Is this motor compatible with my current blower housing?
The 1700 model uses a standard 48Y frame and provides ring or stud mount options, making it a drop-in replacement for most 5.6-inch diameter motor applications requiring a 1/2-inch shaft.
How do I change the rotation of the motor?
As a reversible rotation motor, you can easily switch the lead connections per the wiring diagram on the nameplate to match the original fan blade or blower wheel orientation.
Can I use this motor in a 115V system?
No, this specific model is designed for 208-230Vac single phase power. Operating this motor at 115V will cause failure or prevent the motor from starting under load.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $340.55
-65%$340.55
$119.19Nidec-US Motors 1700 Motor
