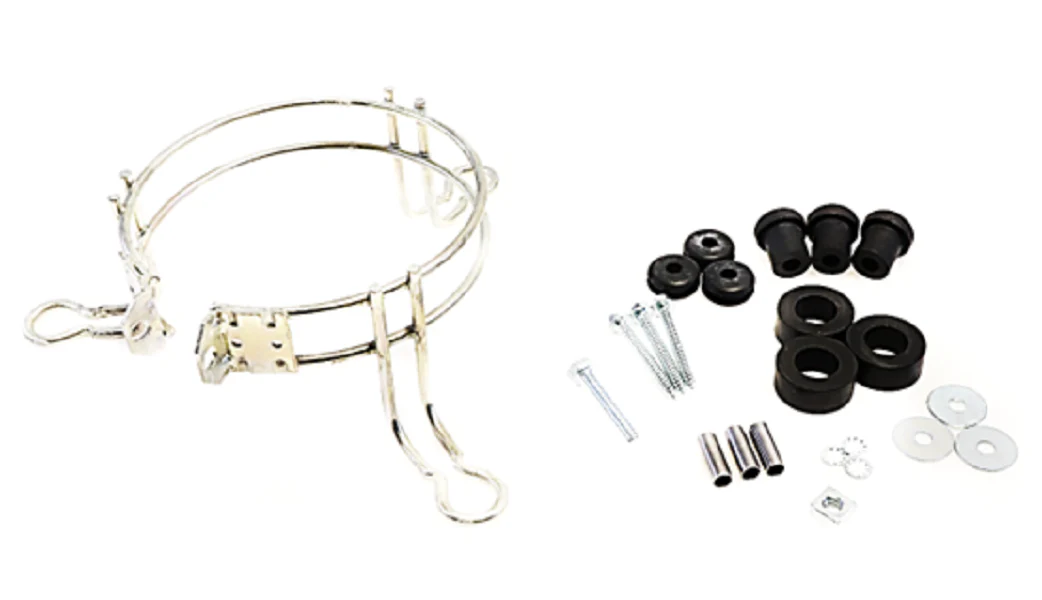

Nidec-US Motors 17 Mounting Ring Set
The Nidec-US Motors 17 Mounting Ring Set is a specialized hardware kit engineered for securing 5.6-inch diameter motors within 10-inch blower mount housings. Designed for direct drive blower motor installation, these mounting rings provide the necessary structural support to minimize vibration and maintain precise rotor-stator alignment. Proper blower motor mounting hardware is critical in high-static pressure applications where axial and radial stability directly impact bearing longevity. This HVAC motor adapter ring set simplifies the process of retrofitting aftermarket motors into OEM blower assemblies, ensuring the motor remains centered within the scroll for optimal airflow. By utilizing these 5.6-inch motor mounting rings, technicians can reduce mechanical noise and prevent premature fatigue on the blower wheels. This heavy-duty set is essential for residential and light commercial air handlers, offering a robust interface between the motor frame and the fan housing that meets rigorous field standards.
- Precision Fitment: Specifically machined for 5.6-inch NEMA 48 frame motors to ensure a secure, slip-free capture.
- Optimized Alignment: Bridges the gap to 10-inch blower mounts, maintaining the critical center line for maximum CFM delivery.
- Vibration Dampening: Rigid construction helps isolate motor harmonics from the ductwork, reducing operational decibel levels.
- Direct Replacement: Compatible with various US Motors and Nidec direct drive blower assemblies used in furnace and air handler units.
Common Questions
Will this ring set fit a 5-inch diameter motor?
No, this specific kit is engineered precisely for 5.6-inch diameter motors. Using incorrect sizing can lead to motor displacement and potential damage to the blower wheel.
What is the purpose of the 10-inch dimension?
The 10-inch specification refers to the mounting bolt circle or cradle diameter of the blower housing where the motor is to be suspended.
Do I need specialized tools to install these mounting rings?
Standard technician hand tools are sufficient for installation, though ensuring even tension across the mount is vital to avoid housing distortion.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
17 is the cross of KIT317
Original: $32.81
-65%$32.81
$11.48Nidec-US Motors 17 Mounting Ring Set
