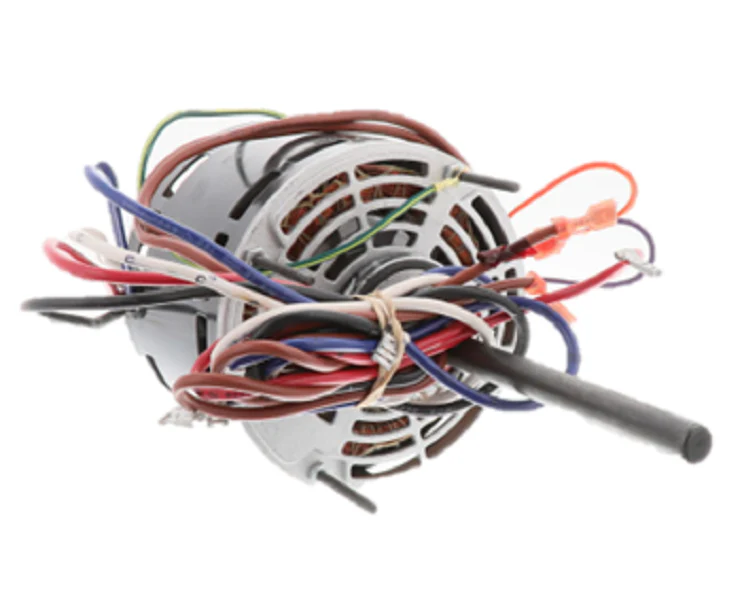

Nidec-US Motors 1692 Motor
The Nidec-US Motors 1692 is a high-performance direct drive blower motor designed specifically for residential and commercial HVAC units. Operating at 115Vac, this 1/3 HP furnace motor offers a synchronous speed of 1800 RPM with a base operating speed of 1625 RPM. As a three-speed blower motor, it provides flexible airflow control to meet various cooling and heating demands. The 48Y NEMA frame and 1/2" diameter shaft ensure a standard fit for most 5.6-inch diameter blower housings, while the reversible rotation feature adds critical versatility for field replacements.
Engineered for longevity, this Permanent Split Capacitor (PSC) motor features an Open Air Over (OAO) enclosure, allowing the system's airstream to effectively manage internal thermal loads during continuous duty cycles. High-grade self-aligning ball bearings facilitate smooth operation and allow for all-angle mounting, whether utilizing the resilient ring or stud mount configuration. Drawing 3.7 Amps at full load, the motor integrates automatic reset thermal overload protection to safeguard the windings against overheating during stalls or high-static conditions.
Key Benefits
- Multi-Speed Flexibility: Features 3 distinct speed taps for precise CFM tuning in furnace and air handler applications.
- Universal Mounting: Equipped with 2.5-inch diameter resilient rings and extended thru-bolts for ring or stud mount setups.
- Rugged Reliability: Self-aligning ball bearings handle high-performance direct drive loads better than standard sleeve bearings.
- Simplified Installation: Reversible rotation allows technicians to match existing blower wheel direction without stocking multiple units.
- High Efficiency: The PSC motor design optimizes electrical consumption compared to shaded pole alternatives.
Common Questions
What capacitor is required for the Nidec 1692?
This motor requires a 15 MFD / 370V run capacitor for proper startup and peak running efficiency.
Can this motor be used in a vertical shaft-down position?
Yes, the inclusion of ball bearings and an all-angle thrust system allows this motor to be mounted in any orientation, including vertical applications.
How do I change the rotation on this motor?
Rotation is easily reversed by swapping the two leads (typically purple and yellow) at the connection point per the provided wiring diagram.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
