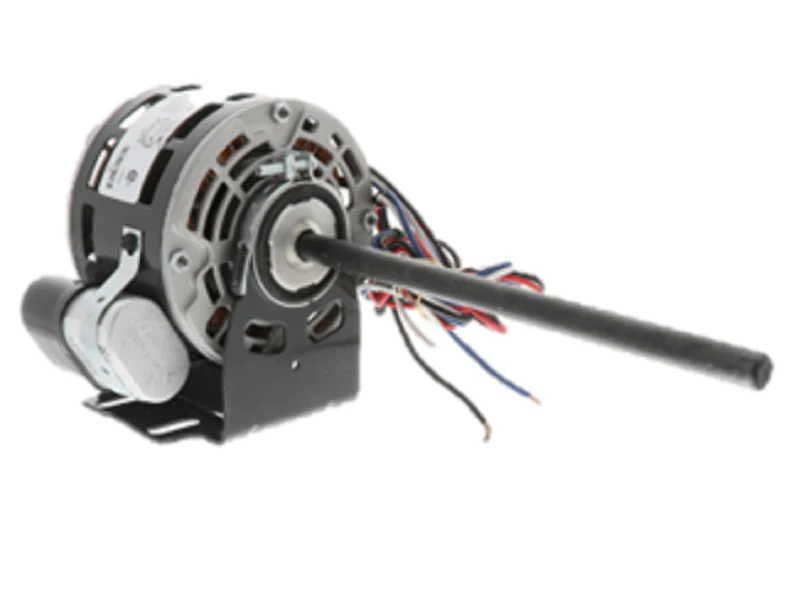

Nidec-US Motors 1676 Motor
The Nidec-US Motors 1676 is a professional-grade 1/20 HP Permanent Split Capacitor (PSC) motor engineered for precision performance in HVAC blower systems. Designed for direct drive applications, this 115V single-phase motor features a 3-speed configuration, allowing technicians to fine-tune airflow for PTAC units (Packaged Terminal Air Conditioners) and various heat pump assemblies. The 42Y NEMA frame and resilient base mount provide a stable, vibration-dampened installation, while the open air over (OAO) enclosure ensures consistent thermal regulation during continuous duty. With 1100 RPM operation and a 1/2" diameter shaft, this motor serves as a high-reliability drop-in for OEM replacement motors in residential and commercial climate control equipment. The 0.55-amp draw and self-aligning ball bearings contribute to a high-efficiency footprint with reduced mechanical friction across the 6-pole internal architecture.
- Versatile 3-Speed Control: Provides flexible multi-tap wiring options for precise CFM adjustments in custom fan coil units.
- Direct Replacement Compatibility: Designed specifically for HVACR service, fitting standard PTAC motors and small blower housing configurations.
- Enhanced Thermal Protection: Features an automatic reset thermal overload protector to prevent winding failure during high-ambient stress.
- Durable Bearing System: Utilizes self-aligning ball bearings with an all-angle thrust system for mounting in horizontal or vertical orientations.
- High-Quality Construction: Built by Nidec-US Motors with Class B insulation and a resilient mounting base to minimize structural noise transfer.
Common Questions
Is this motor compatible with 370V capacitors?
Yes, the 1676 model is designed for use with a 5 MFD, 370V run capacitor to ensure optimal torque and efficient phase shift during operation.
What is the lead end rotation for this unit?
This motor is specified for Clockwise Lead End (CWLE) rotation, typically used in specific fan blade or blower wheel configurations across Trane and other major OEM brands.
Can this be used in an enclosed system without airflow?
No, this is an Open Air Over (OAO) motor and requires the driven fan's airflow to pass over the motor body to maintain safe operating temperatures during continuous duty.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
