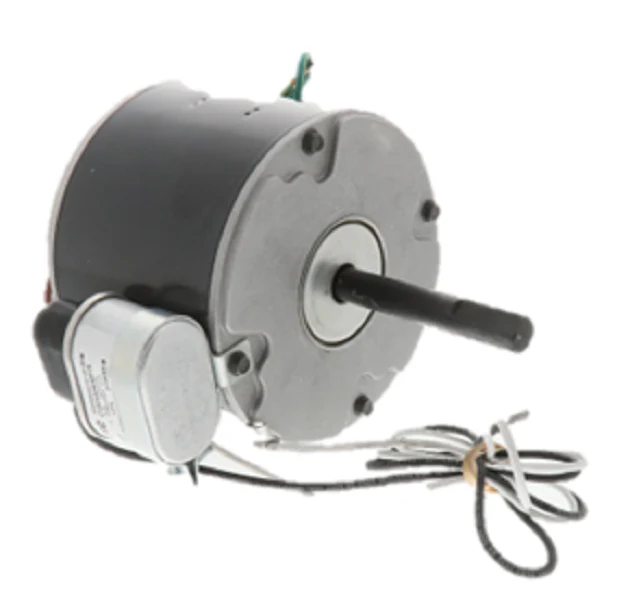

Nidec-US Motors 1675 Motor
The Nidec-US Motors 1675 Motor is a high-reliability condenser fan motor designed specifically for demanding residential and light commercial HVAC applications. Operating at 1550 RPM with a 1/8 HP rating, this PSC motor (Permanent Split Capacitor) provides stable performance in 230V single-phase systems. The 1675 is engineered with a 42Y frame, featuring a 5-inch diameter and a 1/2-inch diameter shaft, making it a critical replacement part for technicians working on compact condenser units where standard 48-frame motors may present clearance issues. Its Open Drip Proof (ODP) enclosure facilitates maximum airflow for continuous air over duty, while the self-aligning ball bearings ensure smooth operation even in varied mounting orientations, including band or stud mount. With a low 0.79 Amp draw, this motor prioritizes electrical efficiency and thermal stability for long-term field service.
Key Benefits- Versatile Mounting: Compatible with both flex-mount (band) and stud-mount configurations for rapid field installation.
- Optimized Efficiency: The Permanent Split Capacitor (PSC) design reduces electrical consumption while improving torque profile.
- Enhanced Durability: Equipped with self-aligning ball bearings that handle both horizontal and shaft-up/down installations without premature wear.
- Compact Profile: The NEMA 42Y frame is ideal for tight-clearance condensers requiring a 5-inch motor housing.
- Thermal Protection: Features internal automatic reset thermal overload protection to prevent stator winding failure during high-ambient conditions.
What does the "Y" suffix in the 42Y frame size indicate?
The "Y" denotes a non-standard NEMA mounting or shaft variation. In the case of the 1675 motor, it signifies the specific mounting bolt pattern and 1/2-inch shaft, which differs from standard 3/8-inch 42-frame shafts.
Can I use a 370V capacitor with this motor?
Yes, while the motor requires a 5 MFD capacitor, it is standard practice for technicians to utilize a 370V rated capacitor to ensure voltage surge tolerance, provided the capacitance (MFD) matches the nameplate requirements.
Is this motor reversible?
The Nidec 1675 is typically specified for CCW Lead End Rotation. Always verify the rotation of the existing fan blade before installation to ensure proper airflow direction across the condenser coils.
