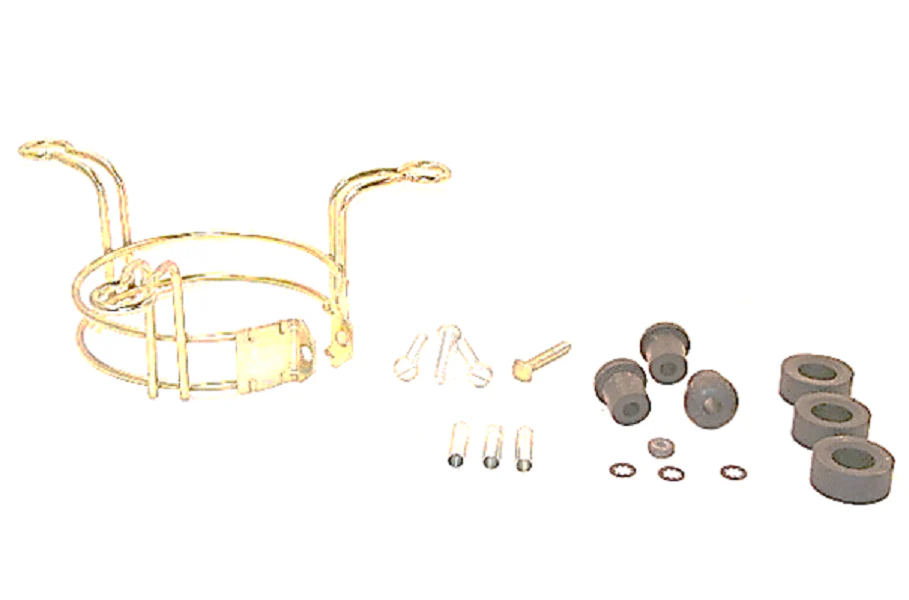

Nidec-US Motors 16 Mounting Ring Set
The Nidec-US Motors 16 Mounting Ring Set is an essential OEM kit for technicians performing motor replacements on direct drive blower systems. Engineered to accommodate a 5.0 inch motor diameter, this set ensures a secure fit within a 9 9/32 inch blower mount diameter, often referred to as a 10-inch blower mount configuration. This direct drive blower mounting ring set features a robust double wire type support ring designed to maintain structural integrity under the high torque of furnace and air handler startups. Field-proven for residential and light commercial HVAC applications, this kit eliminates the vibration and misalignment issues common with generic brackets. Each Nidec 16 Mounting Ring Set includes the specialized motor support ring, three heavy-duty rubber mounting bushings with metal sleeves, and all necessary mounting screws. Utilizing this factory-authorized US Motors HVAC part ensures that your motor remains centered and balanced, preventing premature bearing failure and noisy operation in tight blower housings.
- Precision Compatibility: Specifically designed for 5.0" diameter motors and 9 9/32" (approx. 10") blower mounts.
- Vibration Dampening: High-grade rubber bushings isolate mechanical noise and reduce resonant feedback.
- Durable Construction: Double-wire band design provides superior tension and hold compared to single-wire alternatives.
- Complete Installation Kit: Includes ring, bushings, sleeves, and fasteners to streamline field service calls.
Common Questions
What is the difference between a 48-frame and a 5.0-inch motor mounting ring?
A 48-frame motor typically has a 5.6-inch diameter. This 16-ring set is specifically machined for smaller 5.0-inch diameter motors, ensuring the clamping force is evenly distributed without crushing the motor shell.
Can I use this set for a motor with a 9-inch mount diameter?
This set is strictly designed for a 9 9/32" blower housing mount. Using it on a smaller 9-inch mount will result in a loose fit and excessive vibration; always verify the blower housing dimensions before installation.
Are the rubber bushings oil-resistant?
Yes, the included rubber bushings are engineered to withstand the typical lubricants and ambient conditions found in HVAC blower motor assemblies, maintaining their dampening properties over long-term operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
