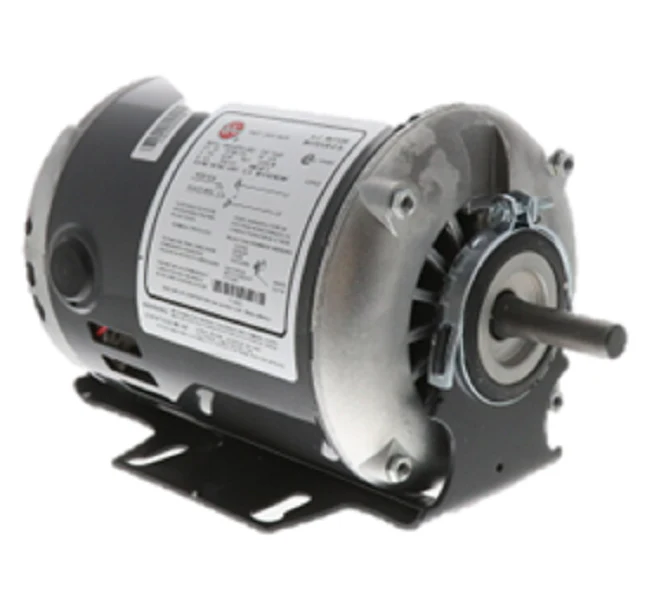

Nidec-US Motors 1542C Motor
The Nidec-US Motors 1542C is a professional-grade 1/2 HP AC motor engineered for reliable performance in demanding HVACR cycles. Operating at a fixed 1725 RPM on a single-phase 115V power supply, this split-phase motor is built with a rugged NEMA 56 frame to ensure high structural integrity during continuous duty. It features an Open Drip Proof (ODP) enclosure, making it ideal for indoor environments where protection from moisture is secondary to maximum airflow and cooling efficiency. The US Motors 1542C utilizes high-quality ball bearings for low friction and extended mechanical life, while the resilient base mounting significantly reduces vibrational noise transfer through the ductwork or chassis. For contractors seeking a drop-in HVAC blower motor replacement, this unit offers a standard 5/8-inch shaft diameter and is rated for Class A insulation, maintaining thermal stability under standard operating conditions.
Key Benefits
- High Starting Torque: The split-phase design provides the necessary torque to initiate belt-drive blower systems and industrial fans efficiently.
- Reduced Vibration: Equipped with a cradle base (resilient mount) to isolate motor harmonics and ensure quieter operation in residential or commercial settings.
- Reliable Thermal Protection: Features internal automatic reset thermal overload protection to prevent winding failure during unexpected voltage fluctuations.
- Standardized NEMA Dimensions: The NEMA 56 frame allows for straightforward compatibility with a wide range of mounting brackets and pulley systems.
Common Questions
What are the wiring requirements for the 1542C motor?
As a dedicated 115V single-phase motor, it requires a standard hot, neutral, and ground connection. Always verify the wiring diagram on the nameplate as rotation may be reversible depending on the lead configuration.
Can this motor be used in outdoor condensing units?
This is an ODP (Open Drip Proof) motor intended for dry, indoor applications. It should not be used in areas where it is directly exposed to rain or heavy splashing without additional weather protection.
Is the rotation reversible?
Yes, most 1542C units allow for reversible rotation by switching the internal lead wires, making it versatile for both clockwise and counter-clockwise fan configurations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $205.80
-65%$205.80
$72.03Nidec-US Motors 1542C Motor
The Nidec-US Motors 1542C is a professional-grade 1/2 HP AC motor engineered for reliable performance in demanding HVACR cycles. Operating at a fixed 1725 RPM on a single-phase 115V power supply, this split-phase motor is built with a rugged NEMA 56 frame to ensure high structural integrity during continuous duty. It features an Open Drip Proof (ODP) enclosure, making it ideal for indoor environments where protection from moisture is secondary to maximum airflow and cooling efficiency. The US Motors 1542C utilizes high-quality ball bearings for low friction and extended mechanical life, while the resilient base mounting significantly reduces vibrational noise transfer through the ductwork or chassis. For contractors seeking a drop-in HVAC blower motor replacement, this unit offers a standard 5/8-inch shaft diameter and is rated for Class A insulation, maintaining thermal stability under standard operating conditions.
Key Benefits
- High Starting Torque: The split-phase design provides the necessary torque to initiate belt-drive blower systems and industrial fans efficiently.
- Reduced Vibration: Equipped with a cradle base (resilient mount) to isolate motor harmonics and ensure quieter operation in residential or commercial settings.
- Reliable Thermal Protection: Features internal automatic reset thermal overload protection to prevent winding failure during unexpected voltage fluctuations.
- Standardized NEMA Dimensions: The NEMA 56 frame allows for straightforward compatibility with a wide range of mounting brackets and pulley systems.
Common Questions
What are the wiring requirements for the 1542C motor?
As a dedicated 115V single-phase motor, it requires a standard hot, neutral, and ground connection. Always verify the wiring diagram on the nameplate as rotation may be reversible depending on the lead configuration.
Can this motor be used in outdoor condensing units?
This is an ODP (Open Drip Proof) motor intended for dry, indoor applications. It should not be used in areas where it is directly exposed to rain or heavy splashing without additional weather protection.
Is the rotation reversible?
Yes, most 1542C units allow for reversible rotation by switching the internal lead wires, making it versatile for both clockwise and counter-clockwise fan configurations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
