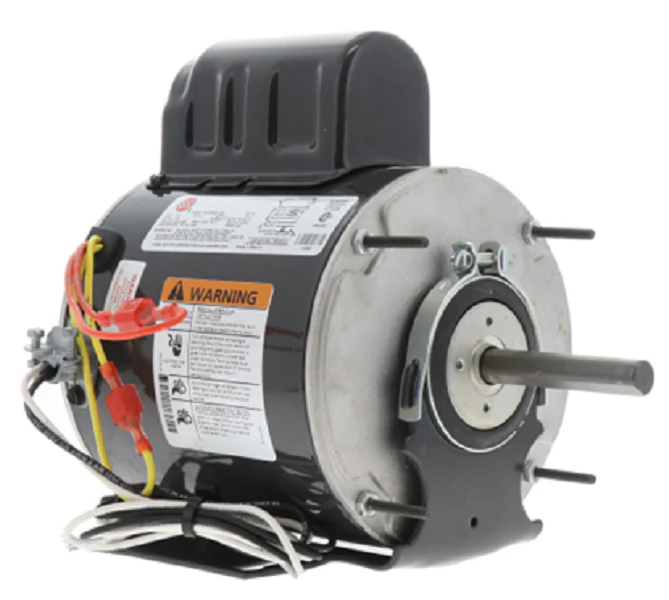

Nidec-US Motors 1386 Motor
The Nidec-US Motors 1386 is a professional-grade 1/6 HP 1075 RPM permanent split capacitor (PSC) motor designed for demanding HVAC blower motor applications. Running on 115V single-phase power, this 48-frame motor features a high-efficiency design that ensures reliable airflow in residential and light commercial air handlers. As a versatile direct drive blower motor, it utilizes a reversible rotation feature, allowing technicians to configure it for clockwise or counter-clockwise applications on-site. The motor is engineered with sleeve bearings for quiet operation and thermal overload protection to prevent winding failure during high-static conditions. Whether you are performing a furnace motor replacement or upgrading a standard fan coil unit, the 1386 provides the torque consistency and multi-speed capability required to maintain system static pressure. This resilient US Motors 1386 is a standard-mount solution that integrates seamlessly with existing mounting brackets and 5-mfd capacitors.
Key Benefits
- Multi-Speed Versatility: Engineered with multiple speed taps to fine-tune CFM according to specific ductwork requirements.
- Standard 48-Frame Housing: Ensures a drop-in fit for most furnace blowers and small exhaust fans, reducing field modification time.
- Class B Insulation: Rated for higher operating temperatures to maintain performance in tight, unconditioned mechanical rooms.
- Reversible Rotation: Simple lead reversal allows for flexible CW/CCW rotation to match the original equipment manufacturer (OEM) blower wheel.
- Automatic Reset Thermal Protector: Guards the internal windings against overheating due to restricted airflow or capacitor failure.
Common Questions
What capacitor is required for the US Motors 1386?
This motor typically requires a 5 MFD / 370V run capacitor for proper phase shift and torque. Always check the nameplate before installation.
Is this motor suitable for outdoor condenser units?
No, the 1386 is an open-air-over (OAO) design best suited for indoor air handlers and furnace cabinets where it is protected from direct weather exposure.
How do I change the rotation on this model?
Rotation is usually reversed by swapping the two yellow/purple or similar color-coded leads at the motor housing, following the included wiring diagram.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
