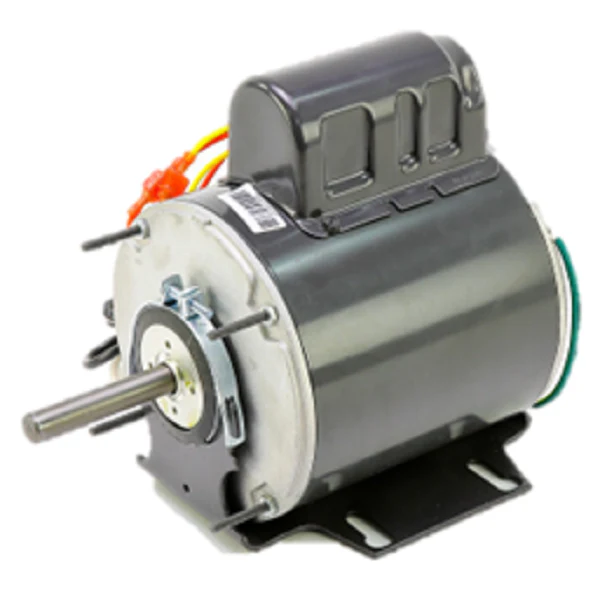

Nidec-US Motors 1384 Motor
The Nidec-US Motors 1384 Motor is a high-performance 1/4 HP condenser fan motor designed for demanding HVAC applications. Operating at 115V, single phase with a rated speed of 1075 RPM, this motor serves as a direct-drive replacement for many high-static residential and light commercial units. Engineered with a TEAO (Totally Enclosed Air Over) enclosure, the 1384 prevents dust, moisture, and airborne contaminants from entering the internal windings, ensuring reliability in outdoor environments. It features Class B insulation and utilizes automatic reset thermal overload protection to prevent stator failure under high ambient temperatures. This permanent split capacitor (PSC) motor delivers high starting torque and consistent efficiency for continuous-duty operation. With a 48-frame diameter and multiple mounting options, local contractors can rely on this unit for precise HVAC replacement motor compatibility in condenser fan assemblies.
Key Benefits
- TEAO Enclosure: Protects internal components against harsh weather conditions and particulates.
- Thermal Protection: Integrated automatic reset thermal overload prevents winding burnout.
- Mounting Versatility: Designed with a 1/2-inch diameter shaft and flexible mounting configurations for Nidec 1384 compatibility.
- Professional Grade Reliability: Built for continuous-duty air-over applications to maintain system pressure.
Common Questions
Is the Nidec 1384 a suitable 115V condenser fan motor replacement?
Yes, this motor is specifically engineered as a 115V 1075 RPM replacement for 1/4 HP drive systems requiring a TEAO enclosure and PSC configuration.
What capacitor is required for the 1384 motor?
This motor typically requires a 5 MFD/370V capacitor; always verify the rating on the nameplate to ensure optimal motor starting torque.
Can this motor be mounted in any orientation?
This 48-frame HVAC motor is designed for shaft-up, shaft-down, or horizontal mounting, making it a versatile drop-in for most outdoor condensers.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
