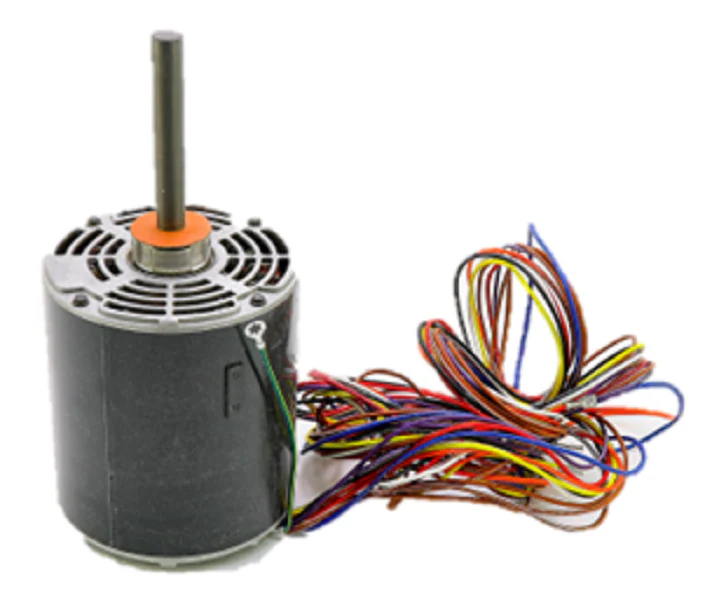

Nidec-US Motors 1376 Blower Motor
The Nidec-US Motors 1376 Blower Motor is a high-performance 1HP permanent split capacitor motor engineered for demanding commercial and industrial air handling applications. Operating at 1125 RPM, this 48-frame blower motor features a dual-voltage design compatible with 208-230/460Vac systems. Its totally enclosed air over (TEAO) enclosure ensures the internal components remain protected from dust and debris while utilizing the system’s airflow for efficient cooling. With a robust multi-speed design and reversible rotation, the 1376 provides the versatility required for field replacements in varied HVAC equipment. Built with Class B insulation and double-sealed ball bearings, this direct drive blower motor is designed to handle high static pressure and continuous duty cycles. For contractors, the Nidec 1376 offers a reliable solution for maintaining optimal CFM output in rooftop units and large-scale ventilation systems where three-phase power or high-torque performance is necessary.
Key Benefits
- Dual Voltage Versatility: Operates on 208-230V or 460V, reducing the need to carry multiple motor SKUs on the truck.
- TEAO Enclosure: The Totally Enclosed Air Over design prevents contaminants from compromising the windings in harsh environments.
- Optimized Performance: Specifically tuned for 1125 RPM to balance high airflow requirements with energy efficiency.
- Professional Durability: Features heavy-duty ball bearings and thermal overload protection for sustained operation in commercial air handlers.
Common Questions
Is the Nidec 1376 compatible with variable frequency drives?
This specific model is a standard induction motor designed for constant speed application. Using it with a VFD may require verifying the motor's insulation class and cooling requirements under reduced speeds.
Can I reverse the rotation direction in the field?
Yes, the 1376 is designed with lead wires that allow for easy mechanical reversal, making it compatible with both clockwise and counter-clockwise blower wheels.
What capacitor is required for the 208-230V configuration?
Technicians should always check the nameplate for the specific MFD rating, as the capacitor size is critical for proper torque and amperage draw during startup and run cycles.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
