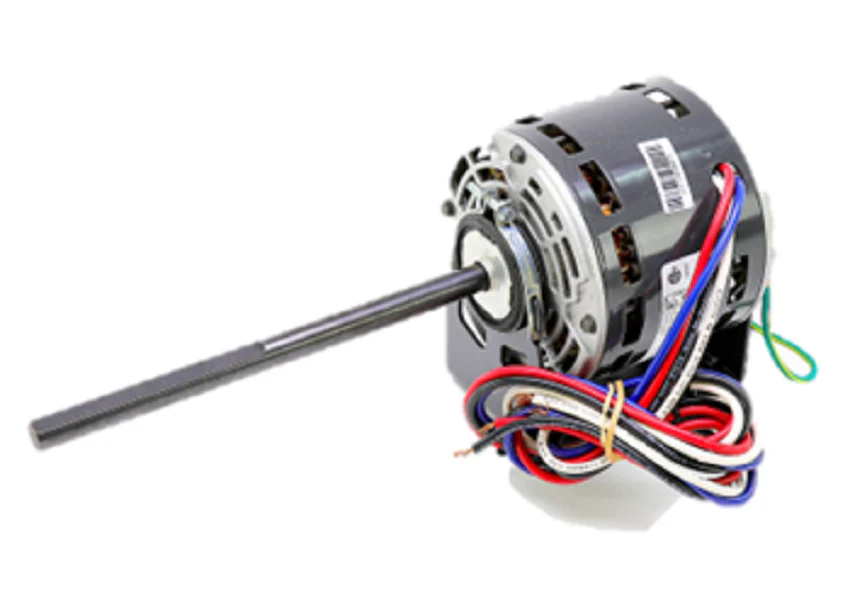

Nidec-US Motors 1374 Motor
The Nidec-US Motors 1374 is a professional-grade direct drive blower motor engineered specifically for technical requirements in packaged terminal air conditioner (PTAC) and heat pump units. This 1/30 HP, 115V permanent split capacitor motor operates at 1100 RPM with 3-speed versatility, allowing for precise airflow adjustment in cooling and heating cycles. Built on a 42Y NEMA frame with a 5-inch diameter, it features an open air over (OAO) enclosure to facilitate optimal thermal management during continuous duty operations. The resilient mount design significantly reduces vibration transfer through the chassis, while the self-aligning ball bearings with an all-angle thrust system ensure reliable performance in multiple orientations. Technicians will find the 1/2" diameter by 8.5" long shaft and CW lead end rotation compatible with various Trane and Dayton cross-references, including common furnace blower motor replacements. An automatic reset thermal overload protector is integrated to prevent winding failure during high-ambient conditions.
Key Benefits- Multi-Speed Flexibility: The 3-speed configuration provides adaptable performance for heating and air circulation across different system demands.
- Enhanced Durability: Equipped with Class B insulation and an all-angle thrust system suitable for continuous duty in PTAC units.
- Vibration Dampening: The resilient base mount isolates motor oscillations from the fan housing, ensuring quieter operation.
- Broad Compatibility: Standard 42Y frame size and 1/2-inch shaft diameter allow for seamless installation in OEM HVAC equipment.
What capacitor is required for the US Motors 1374?
This permanent split capacitor motor is designed to operate with a 5 MFD, 370V capacitor for proper torque and efficiency.
Is this motor suitable for outdoor condenser applications?
No, this is an Open Air Over (OAO) motor intended for indoor blower or PTAC applications where the motor is shielded from direct weather exposure.
Can the rotation of this motor be reversed in the field?
The 1374 is set for CW lead end rotation (CWLE) or CCW shaft end (CCWSE). Verify your fan blade pitch before installation as the rotation is typically non-reversible.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
