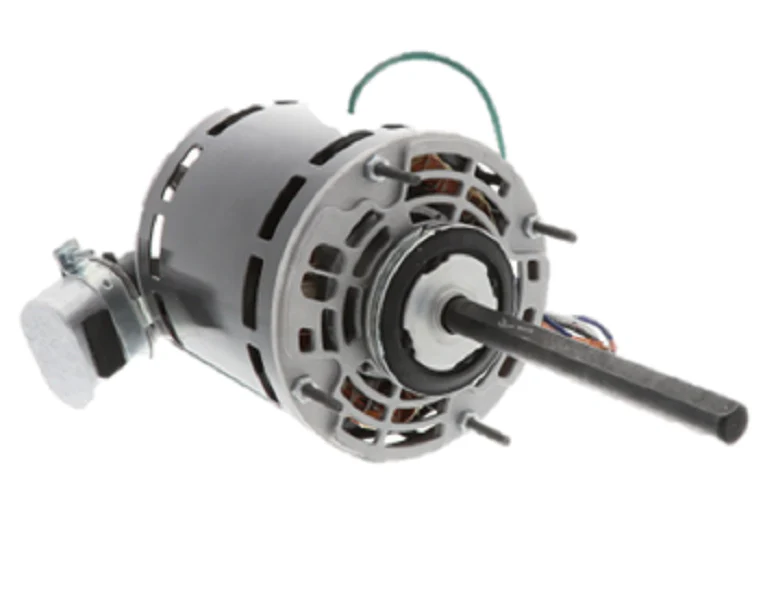

Nidec-US Motors 1338P Motor
Upgrade your air handling systems with the Nidec-US Motors 1338P, a specialized 1/5 HP blower motor engineered for direct drive furnace and commercial ventilation applications. This multi-speed HVAC motor operates on 115V single phase power, delivering a reliable 1050 RPM at high speed. Designed with a 42Y NEMA frame and an Open Air Over (OAO) enclosure, this Permanent Split Capacitor (PSC) motor ensures efficient thermal management by utilizing the airstream for cooling. Technical features include self-aligning ball bearings for extended sleeve-bearing-style longevity and an automatic reset thermal overload protector to prevent winding failure during high-static conditions. Whether you are performing a Fasco D158 replacement or a general system retrofit, the 1338P motor offers versatile ring or stud mounting and a standard 1/2" shaft to optimize compatibility with existing blower wheels.
Key Benefits:- Multi-Speed Flexibility: Features 3 distinct speeds (High/Med/Low) for precise airflow tuning in diverse ductwork configurations.
- Heavy-Duty Construction: Built with a 42Y frame and rolled steel housing to withstand the rigors of continuous duty blower operation.
- Simplified Installation: Includes a 2.5-inch diameter hub for resilient ring mounting and extended studs for direct bracket attachment.
- Optimized Efficiency: The PSC design reduces amperage draw (rated at 3.2 Amps) while maintaining high starting torque for heavy blower loads.
- All-Angle Mounting: Equipped with a reliable thrust system, allowing for secure professional installation in multiple orientations.
Is the capacitor included with this motor?
Yes, this is a Permanent Split Capacitor motor and typically ships with the required 5MFD/370VAC capacitor already attached or included in the box to ensure proper phase displacement.
Can this motor replace a 1075 RPM model?
The 1338P is rated at 1050 RPM. While it is a standard 6-pole speed, always verify that the slight RPM difference and the CCW lead end rotation match your specific blower housing requirements.
What does the 42Y frame size indicate?
A 42Y NEMA frame indicates a 5.0-inch diameter motor body. The "Y" suffix denotes a special mounting configuration, which in this case includes resilient rings and studs for universal field replacement.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
