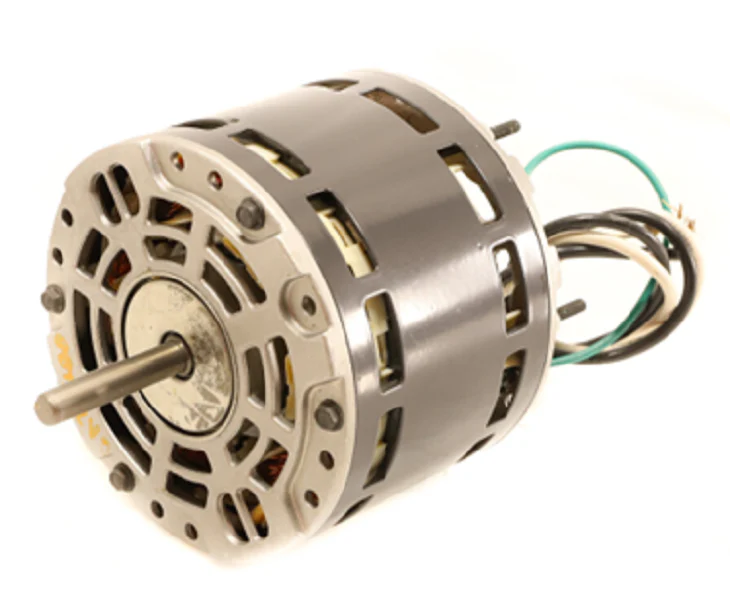

Nidec-US Motors 1336 Motor
The Nidec-US Motors 1336 Motor is a professional-grade 1/10 HP shaded pole motor designed for direct drive blower and fan applications in demanding HVACR environments. Operating at 115V single phase and a 1050 RPM base speed, this 42Y frame motor (5.0-inch diameter) delivers reliable performance with a 3.7 amp full load draw. Engineered with continuous duty capacity and an Open Air Over (OAO) enclosure, it ensures optimal heat dissipation when placed directly in the airflow of furnace or air handling units. The sleeve bearing system and counter-clockwise lead end (CCWLE) rotation make it a standard drop-in for technicians replacing fractional horsepower fan motors. Mounting is handled via the integrated hub ring mount and 2.5-inch rings, or through the stud mount configuration, providing the flexibility needed for field retrofits. This 1336 Nidec motor features automatic thermal overload protection to prevent winding failure during restricted airflow conditions.
Key Benefits:- Universal Compatibility: The 42Y NEMA frame size and dual mounting options (stud and hub ring) accommodate a wide variety of OEM blower housings.
- Optimized Performance: Specifically designed as a direct drive blower motor to maintain consistent air delivery in residential and light commercial systems.
- Industrial Durability: Verified for continuous duty with Class B insulation, ensuring long-term operation within standard ambient temperature ranges.
- High Torque Starting: The shaded pole design provides the necessary starting torque for low-inertia fan blades without the need for external capacitors.
- Can I use this motor to replace a PSC motor? No, shaded pole motors should generally only replace existing shaded pole models. Replacing a PSC motor with this unit may result in lower efficiency and inadequate torque for certain loads.
- How is the rotation of the Nidec 1336 determined? Rotation is CCW Lead End (CCWLE), meaning it rotates counter-clockwise when viewed from the wiring/lead end of the motor.
- Is this motor compatible with speed controllers? Yes, the 1336 motor is typically compatible with standard TRIAC-based variable speed controls used in many fan applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
