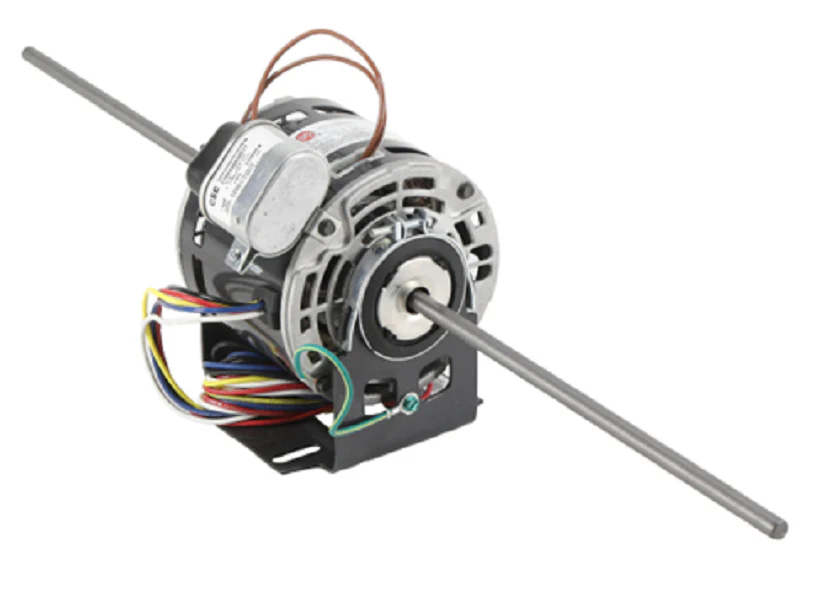

Nidec-US Motors 1182 Motor
When you're dealing with a service call for a condenser fan or light-duty air-moving application, the Nidec-US Motors 1182 motor is a reliable 1/10 HP drop-in for 115V single-phase systems. Running at 1050 RPM, this permanent split capacitor (PSC) motor is built on a 42Y frame, which is critical for technicians to note due to its 5-inch diameter. This smaller frame size is often required for tight clearances where a standard 48-frame motor simply won't fit the mounting bracket or shroud. The US Motors 1182 is designed for continuous air-over (CAO) duty, ensuring the windings stay cool during high-ambient operation. As a technical HVAC professional, you know that matching the Rotation Direction and Shaft Diameter is vital to avoid mechanical stress on the fan blade. This motor provides the performance necessary to maintain proper static pressure and airflow across the coils, preventing high-head pressure issues in the refrigeration circuit.
Key Benefits- Compact 42Y Frame: Specifically designed for 5-inch diameter housing requirements, solving fitment issues in restricted condenser or evaporator units.
- High-Efficiency PSC Design: Provides a more efficient operation compared to shaded-pole alternatives, reducing amp draw and heat generation.
- All-Angle Mounting: Engineered to operate in various orientations, providing flexibility for diverse equipment configurations.
- Thermal Overload Protection: Includes internal automatic reset protection to prevent winding failure during temporary over-temperature conditions.
- Broad Compatibility: Serves as a direct replacement for many OEM fan motors in residential and light commercial HVACR equipment.
Is the 42Y frame compatible with a standard 48 frame bracket?
No, a 42Y frame has a 5-inch diameter while a 48 frame is approximately 5-5/8 inches. You must use the existing 42Y bracket or a specific adapter; forcing a fit can lead to vibration and shaft misalignment.
Can I use this motor if my original was 1075 RPM?
A 1050 RPM motor is generally an acceptable technical substitute for a 1075 RPM motor, as the 25 RPM variance is typically within the motor's slip range and won't significantly impact CFM or static pressure.
Does this motor include the run capacitor?
Capacitors are typically sold separately. Always verify the microfarad (MFD) rating on the new motor's nameplate to ensure you are using the correct capacitance for proper torque and amperage.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
