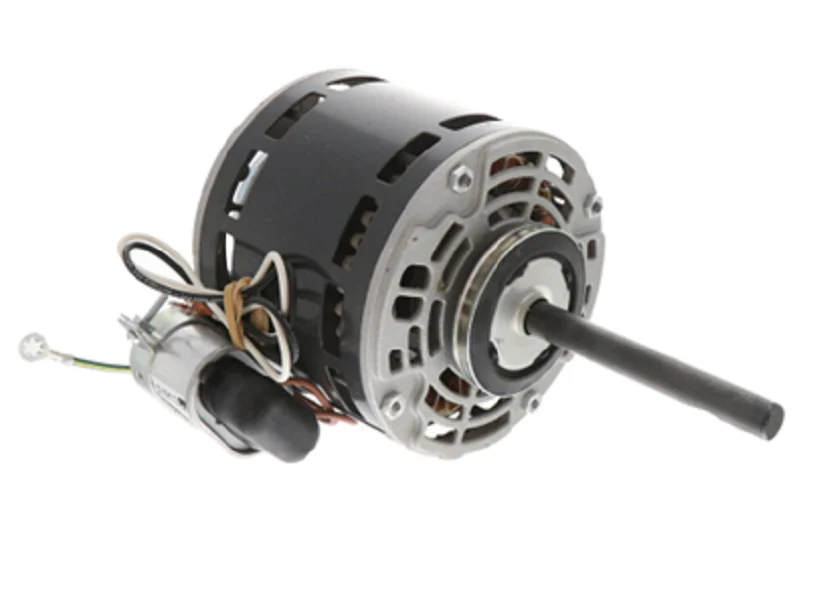

Nidec-US Motors 1127P Motor
The Nidec-US Motors 1127P Motor is a high-performance direct drive blower motor engineered for residential and light commercial HVAC applications. Operating at 1/6 HP and 1050 RPM, this permanent split capacitor motor is a reliable choice for air handlers and furnaces requiring single phase power at 115Vac. The 42Y NEMA frame size and stud mount configuration ensure a secure fit, while the 5-inch diameter motor housing allows for installation in tight blower compartments. Designed with an open air over enclosure (OAO), it utilizes the system's airflow for cooling, maximizing efficiency during continuous operation. This 115V blower motor features self-aligning ball bearings for reduced friction and a 1/2-inch flat shaft for simplified pulley-free mounting. With CCW lead end rotation and a 3.0-amp full load rating, the US Motors 1127P provides stable torque and low noise for critical air movement tasks.
Key Benefits- High Reliability: Self-aligning ball bearings provide extended service life in continuous duty air-over applications.
- Optimized Performance: PSC design delivers higher efficiency and better starting torque than standard shaded pole motors.
- Precision Fit: The 42Y frame and industry-standard 1/2" x 4" shaft allow for seamless replacement in many OEM blowers.
- Thermal Protection: Integrated automatic reset thermal overload protection prevents winding damage during stall conditions.
What is the frame diameter of the 1127P?
This motor utilizes a 5.0-inch diameter (42Y Frame) rolled steel housing, specifically designed for compact direct-drive blower assemblies.
Is this motor reversible?
No, the Nidec 1127P is a fixed-rotation motor with CCW (Counter-Clockwise) rotation when viewed from the lead end (non-shaft end).
Does this motor require a capacitor?
Yes, as a permanent split capacitor (PSC) motor, it requires a 3 MFD/370VAC run capacitor for proper startup and operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $119.45
-65%$119.45
$41.81Nidec-US Motors 1127P Motor
The Nidec-US Motors 1127P Motor is a high-performance direct drive blower motor engineered for residential and light commercial HVAC applications. Operating at 1/6 HP and 1050 RPM, this permanent split capacitor motor is a reliable choice for air handlers and furnaces requiring single phase power at 115Vac. The 42Y NEMA frame size and stud mount configuration ensure a secure fit, while the 5-inch diameter motor housing allows for installation in tight blower compartments. Designed with an open air over enclosure (OAO), it utilizes the system's airflow for cooling, maximizing efficiency during continuous operation. This 115V blower motor features self-aligning ball bearings for reduced friction and a 1/2-inch flat shaft for simplified pulley-free mounting. With CCW lead end rotation and a 3.0-amp full load rating, the US Motors 1127P provides stable torque and low noise for critical air movement tasks.
Key Benefits- High Reliability: Self-aligning ball bearings provide extended service life in continuous duty air-over applications.
- Optimized Performance: PSC design delivers higher efficiency and better starting torque than standard shaded pole motors.
- Precision Fit: The 42Y frame and industry-standard 1/2" x 4" shaft allow for seamless replacement in many OEM blowers.
- Thermal Protection: Integrated automatic reset thermal overload protection prevents winding damage during stall conditions.
What is the frame diameter of the 1127P?
This motor utilizes a 5.0-inch diameter (42Y Frame) rolled steel housing, specifically designed for compact direct-drive blower assemblies.
Is this motor reversible?
No, the Nidec 1127P is a fixed-rotation motor with CCW (Counter-Clockwise) rotation when viewed from the lead end (non-shaft end).
Does this motor require a capacitor?
Yes, as a permanent split capacitor (PSC) motor, it requires a 3 MFD/370VAC run capacitor for proper startup and operation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
