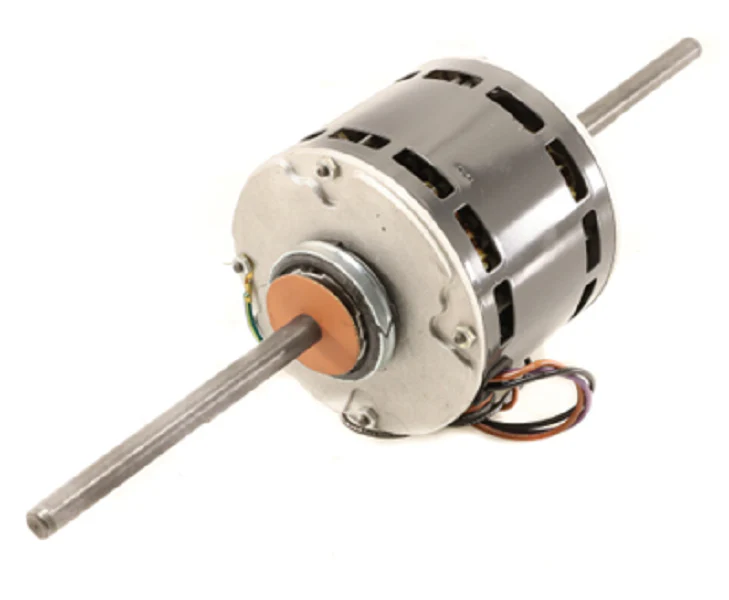

Nidec-US Motors 1124 Blower Motor
The Nidec-US Motors 1124 Blower Motor is a rugged, 1/5 HP direct drive blower motor engineered for demanding HVACR applications. Operating at 208-230V, this PSC motor (Permanent Split Capacitor) delivers 1075 RPM and features a versatile 3-speed design, allowing for precise airflow adjustment in residential and light commercial air handlers. Built within a 42Y NEMA frame, this unit utilizes an Open Air Over (OAO) enclosure to maximize heat dissipation during continuous duty operation. The dual shaft blower motor configuration is ideal for double-inlet centrifugal blowers, featuring 5.6-inch diameter shafts with a hub-mount setup. Equipped with sleeve bearings (SAB) and an automatic reset thermal overload protector, this motor is a reliable replacement for OEM units requiring a 1/5 HP, 1.3 Amp rating. The 1124 model is designed to withstand the harsh start-stop cycles typical of central heating and cooling systems while maintaining high electrical efficiency.
Key Benefits- Multi-Speed Versatility: The 3-speed configuration provides flexibility for various static pressure requirements in multi-stage systems.
- Dual-Shaft Design: Specifically engineered for direct-drive blowers that require power on both ends of the motor.
- Proven Durability: Features Class B insulation and an automatic thermal protector to prevent stator failure under high-load conditions.
- Standardized Fitment: The 42Y frame and hub-mount design ensure compatibility with a wide range of fan housings and resilient bases.
- Quiet Operation: Precision-balanced rotors and sleeve bearings reduce vibration and operational noise in the ductwork.
Is a capacitor included with the US Motors 1124?
This is a Permanent Split Capacitor motor that requires a 5 MFD / 370V capacitor. Capacitors are typically sold separately and should be replaced whenever a new blower motor is installed to ensure optimal torque.
Can this motor be used in a 115V application?
No, the 1124 is strictly rated for 208-230Vac single-phase power. Applying 115V will prevent the motor from reaching full speed and will likely damage the windings.
What is the rotation direction of this motor?
The 1124 is traditionally set for Clockwise Lead End (CWLE) rotation. Always verify the rotation requirements of your specific blower wheel before completing the installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $256.01
-65%$256.01
$89.60Nidec-US Motors 1124 Blower Motor
The Nidec-US Motors 1124 Blower Motor is a rugged, 1/5 HP direct drive blower motor engineered for demanding HVACR applications. Operating at 208-230V, this PSC motor (Permanent Split Capacitor) delivers 1075 RPM and features a versatile 3-speed design, allowing for precise airflow adjustment in residential and light commercial air handlers. Built within a 42Y NEMA frame, this unit utilizes an Open Air Over (OAO) enclosure to maximize heat dissipation during continuous duty operation. The dual shaft blower motor configuration is ideal for double-inlet centrifugal blowers, featuring 5.6-inch diameter shafts with a hub-mount setup. Equipped with sleeve bearings (SAB) and an automatic reset thermal overload protector, this motor is a reliable replacement for OEM units requiring a 1/5 HP, 1.3 Amp rating. The 1124 model is designed to withstand the harsh start-stop cycles typical of central heating and cooling systems while maintaining high electrical efficiency.
Key Benefits- Multi-Speed Versatility: The 3-speed configuration provides flexibility for various static pressure requirements in multi-stage systems.
- Dual-Shaft Design: Specifically engineered for direct-drive blowers that require power on both ends of the motor.
- Proven Durability: Features Class B insulation and an automatic thermal protector to prevent stator failure under high-load conditions.
- Standardized Fitment: The 42Y frame and hub-mount design ensure compatibility with a wide range of fan housings and resilient bases.
- Quiet Operation: Precision-balanced rotors and sleeve bearings reduce vibration and operational noise in the ductwork.
Is a capacitor included with the US Motors 1124?
This is a Permanent Split Capacitor motor that requires a 5 MFD / 370V capacitor. Capacitors are typically sold separately and should be replaced whenever a new blower motor is installed to ensure optimal torque.
Can this motor be used in a 115V application?
No, the 1124 is strictly rated for 208-230Vac single-phase power. Applying 115V will prevent the motor from reaching full speed and will likely damage the windings.
What is the rotation direction of this motor?
The 1124 is traditionally set for Clockwise Lead End (CWLE) rotation. Always verify the rotation requirements of your specific blower wheel before completing the installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
