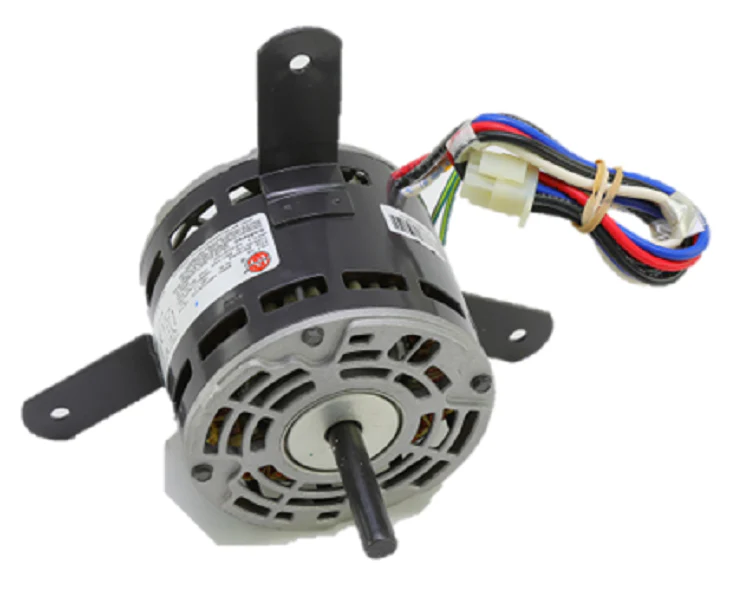

Nidec-US Motors 1105 Motor
The Nidec-US Motors 1105 Motor is a high-performance 1/16 HP direct drive blower motor engineered for precision airflow in HVACR systems. Operating at 115Vac, this PSC motor (Permanent Split Capacitor) offers a 3-speed configuration (850, 700, and 525 RPM), providing contractors with field-adjustable versatility to meet specific static pressure requirements. Housed in a 42-frame (5-inch diameter) open air-over (OAO) enclosure, the 1105 US Motors design facilitates efficient heat dissipation, making it an ideal choice for packaged terminal air conditioner (PTAC) units and residential blower applications. This single-phase AC motor features automatic reset thermal overload protection and Class A insulation to ensure operational reliability under continuous-duty cycles. As a specialized OEM replacement motor, it serves as a drop-in solution for critical HVAC maintenance, replacing models like MOT3589 and K48HXCFC1327 while maintaining strict component compatibility within the air handler assembly.
Key Benefits:- Multi-Speed Versatility: Features 3-speed capability (850/700/525 RPM) to fine-tune system CFM and acoustic performance.
- Thermal Protection: Integrated automatic reset thermal overload protector prevents winding damage during overheating events.
- Reliable PSC Design: The Permanent Split Capacitor architecture ensures high starting torque and improved efficiency compared to shaded-pole alternatives.
- Direct Replacement Logic: Optimized as an HVAC blower motor replacement for standardized 42-frame industrial and residential equipment.
- What are the wiring specifications for this 3-speed motor? The Nidec 1105 utilizes color-coded leads for High, Medium, and Low speeds; always refer to the nameplate wiring diagram to ensure proper capacitor and line connections.
- Can this motor be used in outdoor condensing units? No, this is an Open Air Over (OAO) motor intended for indoor blower wheels where the moving air stream provides necessary cooling.
- Does this motor include the run capacitor? Standard PSC motors require a specific MFD-rated run capacitor for operation; verify if your existing capacitor matches the 1105's requirements before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $230.30
-65%$230.30
$80.61Nidec-US Motors 1105 Motor
The Nidec-US Motors 1105 Motor is a high-performance 1/16 HP direct drive blower motor engineered for precision airflow in HVACR systems. Operating at 115Vac, this PSC motor (Permanent Split Capacitor) offers a 3-speed configuration (850, 700, and 525 RPM), providing contractors with field-adjustable versatility to meet specific static pressure requirements. Housed in a 42-frame (5-inch diameter) open air-over (OAO) enclosure, the 1105 US Motors design facilitates efficient heat dissipation, making it an ideal choice for packaged terminal air conditioner (PTAC) units and residential blower applications. This single-phase AC motor features automatic reset thermal overload protection and Class A insulation to ensure operational reliability under continuous-duty cycles. As a specialized OEM replacement motor, it serves as a drop-in solution for critical HVAC maintenance, replacing models like MOT3589 and K48HXCFC1327 while maintaining strict component compatibility within the air handler assembly.
Key Benefits:- Multi-Speed Versatility: Features 3-speed capability (850/700/525 RPM) to fine-tune system CFM and acoustic performance.
- Thermal Protection: Integrated automatic reset thermal overload protector prevents winding damage during overheating events.
- Reliable PSC Design: The Permanent Split Capacitor architecture ensures high starting torque and improved efficiency compared to shaded-pole alternatives.
- Direct Replacement Logic: Optimized as an HVAC blower motor replacement for standardized 42-frame industrial and residential equipment.
- What are the wiring specifications for this 3-speed motor? The Nidec 1105 utilizes color-coded leads for High, Medium, and Low speeds; always refer to the nameplate wiring diagram to ensure proper capacitor and line connections.
- Can this motor be used in outdoor condensing units? No, this is an Open Air Over (OAO) motor intended for indoor blower wheels where the moving air stream provides necessary cooling.
- Does this motor include the run capacitor? Standard PSC motors require a specific MFD-rated run capacitor for operation; verify if your existing capacitor matches the 1105's requirements before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
