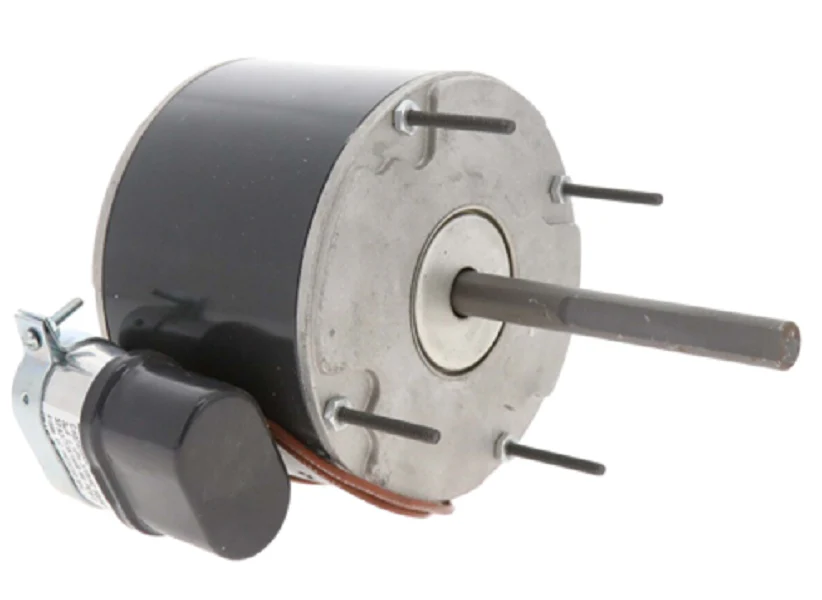

Nidec-US Motors 1101 Motor
The Nidec-US Motors 1101 is a high-performance shaded pole motor designed specifically for demanding HVACR applications, such as blowers and fan units. Operating with a dual-horsepower rating of 1/10-1/15 HP, this unit draws 1.6A to 1.1A at 115V, delivering consistent torque for light-duty air movement. Its thermally protected construction ensures the internal windings are shielded during high-ambient cycles, a critical feature for sustained mechanical reliability in commercial settings. The 3.3-inch diameter frame is often utilized as an OEM replacement motor for various industrial fan assemblies, offering a compact footprint for tight blower pockets. When installing this HVAC blower motor, ensure lead wire connections match the original wiring diagram to maintain correct rotation. This motor’s sleeve bearing design provides quiet operation and reduced vibration, making it a professional choice for environments where acoustic management is as vital as airflow performance.
- Dual-Horsepower Versatility: Optimized for systems requiring 1/10 HP or 1/15 HP output without over-amping the circuit.
- Thermal Overload Protection: Features internal sensors to prevent winding failure during restricted airflow or high-temperature conditions.
- OEM-Grade Construction: Standard 3.3" frame diameter allows for direct-fit installation in a wide range of fan and blower housings.
- Energy Efficient Operation: Low amp draw design (1.6-1.1 Amps) reduces operational costs and heat generation.
- All-Angle Mounting: Built to function reliably in multiple orientations, streamlining the replacement process for field technicians.
Common Questions
Is the Nidec 1101 a suitable replacement for other 3.3-inch frame motors?
Yes, provided the shaft dimensions, rotation direction, and electrical ratings (115V, 1.6A max) match your existing motor's nameplate data.
Can I use this motor if my original unit is only rated for 1/15 HP?
This motor is designed to cover both 1/10 and 1/15 HP applications, making it a versatile service truck stock item for various air-moving tasks.
Does this motor require a start capacitor?
The Model 1101 is typically a shaded pole motor design, which does not require an external run capacitor, simplifying the wiring for the contractor.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
