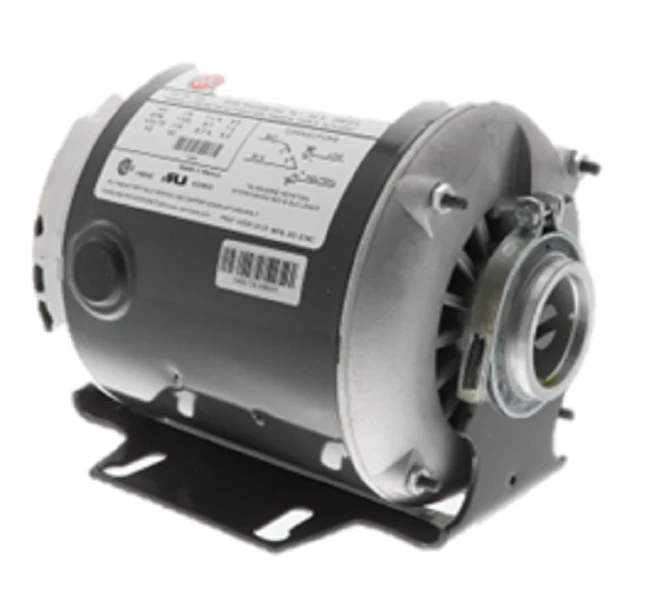

Nidec-US Motors 1003 Motor
When you are dealing with a critical beverage service outage or a commercial pumping failure, Nidec-US Motors 1003 Motor is the industry-standard replacement you need for localized carbonator applications. This 1/3 HP split phase motor is engineered specifically for close-coupled carbonator pump duty, featuring a 48Y NEMA frame with a specialized short, slotted shaft and extended hub end shield. Operating at a synchronous speed of 1800 RPM (1725 RPM nameplate) on a standard 115V single phase circuit, this unit pulls 6.5 full-load amps and is built to withstand continuous duty cycles.
For the technician in the field, the open drip proof (ODP) enclosure and ball bearing construction provide reliability in standard indoor environments. The resilient mount base effectively isolates vibration, which is crucial for maintaining quiet operation in commercial kitchens or mechanical rooms. With reversible rotation capabilities and an automatic reset thermal overload protector, the 1003 model offers the flexibility and safety margins required to match varied OEM specifications and prevent premature winding failure during transient stalls.
Key Benefits:
- Direct Carbonator Fit: Features the 48YZ-style extended hub and slotted shaft for immediate alignment with PROCON or similar pump heads.
- High Starting Torque: Split-phase design provides the necessary break-away torque for pump startup under load.
- Thermal Protection: Integrated automatic reset thermal overload protects against overheating without requiring manual intervention.
- Quiet Operation: The resilient base mounting reduces harmonic noise transfer through the equipment chassis.
- Field Serviceable: Standard green ground lead and threaded conduit hub facilitate fast, code-compliant installations.
Common Questions & Contractor Insights:
Can I use this for non-pumping HVAC fan applications?
This motor is specifically designed for carbonator duty. While the horsepower and RPM might match some blowers, the specialized slotted shaft and end shield dimensions are intended for close-coupled pump mounting, not belt-driven or direct-drive fan blades.
How do I change the rotation on the job site?
The 1003 is reversible. To change direction, follow the wiring diagram on the nameplate, which typically involves interchanging two specific internal leads before completing the final power connection.
What is the service factor for this motor?
This model typically carries a 1.0 service factor, meaning it should be operated within its rated 1/3 HP capacity. Always ensure the pump head is not seized or restricted to avoid drawing current in excess of the 6.5 Amp rating.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
