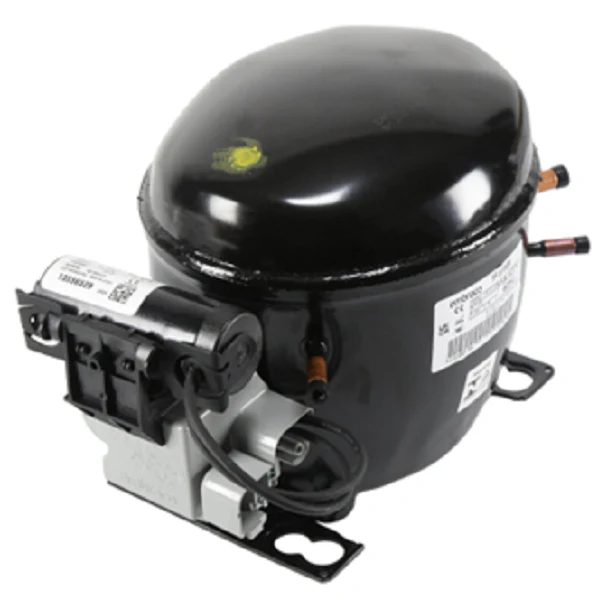

Nidec-Embraco FF8.5HBK1-CAP Compressor
The Nidec-Embraco FF8.5HBK1-CAP is a robust 1/4 HP hermetic reciprocating compressor engineered specifically for high-back pressure (HBP) applications using R134a refrigerant. Operating on a 115V single-phase power supply, this unit delivers a displacement of approximately 7.95 cc, making it a standard choice for heavy-duty commercial refrigeration units, reach-in coolers, and beverage dispensers. As a fractional horsepower compressor, it utilizes a permanent split capacitor (PSC) motor to optimize starting torque and operational efficiency under varying thermal loads. The low-profile design and standard mounting footprint ensure seamless integration during field replacements. Technicians favor this model for its reliable oil management and consistent BTU/hr output, providing stable cooling performance even in demanding ambient conditions. When performing a swap, ensure proper evacuation and filter drier replacement to maintain the integrity of the sealed system.
Key Benefits
- Optimized for R134a: Specifically balanced for medium-to-high evaporation temperatures, ensuring maximum heat transfer efficiency.
- High Starting Torque: The capacitor-run configuration provides reliable startups across a wide range of voltage fluctuations.
- Standardized Footprint: Simplifies the retrofit process for field technicians working on domestic and light commercial equipment.
- Thermal Protection: Integrated internal overload protection prevents motor failure during extreme cycling or high-load events.
Common Questions
Is the FF8.5HBK1-CAP compatible with R404A systems?
No, this compressor is purpose-built for R134a refrigerant. Cross-contaminating refrigerants or using incompatible lubricants will cause premature failure of the internal components.
What type of oil is pre-charged in this unit?
These compressors are typically charged with ester oil (POE) to ensure compatibility with HFC refrigerants. Always verify the oil level and type on the nameplate before completing the installation.
Can this be used in low-temp freezer applications?
The FF8.5HBK1 is optimized for HBP/MBP applications. Using it in a low-temp environment may result in improper motor cooling and insufficient refrigerant flow.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
