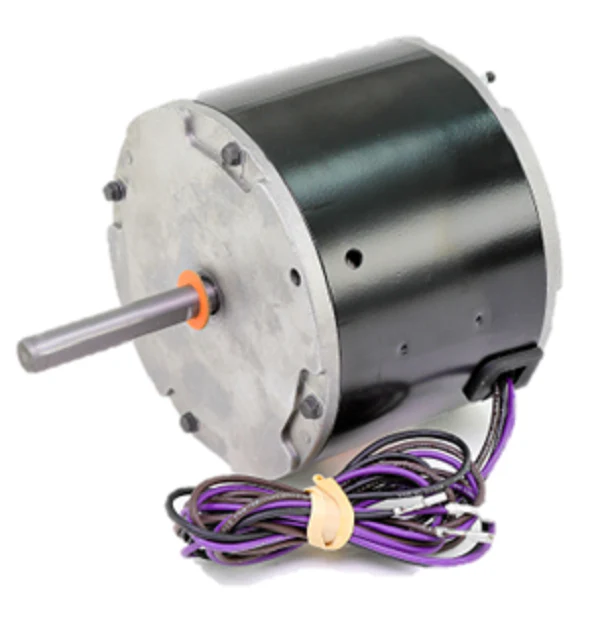

National Comfort Products 14270044 Motor
The National Comfort Products 14270044 Motor is a direct-drive replacement condenser fan motor engineered specifically for high-static thru-the-wall condensing units and heat pumps. This 1/4 HP HVAC motor operates on 208-230V single-phase power at a rated speed of 1075 RPM, delivering the precise torque required to maintain factory-spec airflow. Designed with a PSC (Permanent Split Capacitor) configuration, this motor ensures high electrical efficiency and reliable starting under load. As an OEM replacement motor, it features the exact shaft length and 48-frame diameter necessary for seamless integration into National Comfort Products equipment, preventing the common alignment issues associated with universal motors. Field technicians will appreciate the rugged housing and internal thermal protection, which prevents winding failure during high-ambient operation. This motor is critical for restoring system performance and maintaining the specified subcooling and superheat levels of the refrigeration cycle.
- Precision Airflow: The 1075 RPM rating is calibrated to match factory fan blade pitch for optimal CFM and heat rejection.
- Standard NEMA 48 Frame: Ensures a direct drop-in fit for existing motor mounts and brackets without field modification.
- High Thermal Tolerance: Rated for continuous duty in demanding thru-the-wall applications with automatic reset thermal overload protection.
- Optimized Efficiency: 208-230V operation provides stable performance across a wide range of incoming line voltages common in multi-family housing.
Common Questions
Is this motor rotation reversible?
The 14270044 is typically configured for a specific rotation to match the blower assembly; however, technicians should verify the lead wire configuration or rotation arrow on the motor shell prior to installation.
What capacitor should be used with this motor?
Always refer to the nameplate on the 14270044 motor for the specific MFD/volts requirement; using an aged or incorrectly sized run capacitor will lead to amperage spikes and premature winding failure.
Will this motor work in 115V systems?
No, this is a dedicated 208-230V motor. Connecting it to 115V will result in a failure to start and potential damage to the internal start windings.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
