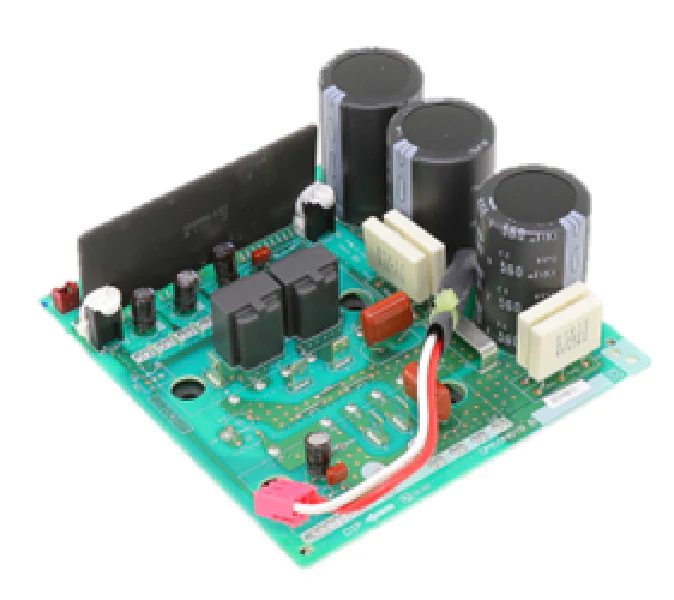

Mitsubishi Electric T7WE80313 Power Board
The Mitsubishi Electric T7WE80313 Power Board is a critical HVAC control board designed for high-performance power regulation within specific PUY-A and PUZ-A outdoor units. As a genuine OEM replacement part, this power circuit board ensures seamless integration with the system's inverter-driven compressor and M-NET communication protocol, shielding sensitive electronic components from voltage fluctuations. Engineered for 24 VAC control circuits, the T7WE80313 manages the DC bus voltage and signal distribution to maintain consistent thermal output and energy efficiency in demanding light commercial and residential split systems. Replacing a faulty T7WE80313 control board restores proper communication between the indoor and outdoor units, preventing common S2-S3 signal errors and ensuring the Mitsubishi power module operates within original factory specifications for long-term field reliability.
Key Benefits
- Precise Voltage Regulation: Maintains stable power flow to protect the inverter compressor and internal sensors from electrical noise.
- Direct OEM Compatibility: Engineered specifically for Mitsubishi PUY-A12NHA4 and PUZ-A18NHA4 models to ensure plug-and-play installation without field modifications.
- Enhanced System Logic: Facilitates high-speed communication via the M-NET bus for accurate troubleshooting and state monitoring.
- Industrial-Grade Build: Constructed with high-thermal-tolerance capacitors and traces to withstand the harsh environment of an outdoor condenser.
Common Questions
- How do I diagnose a failure on the T7WE80313 power board? Technicians should check for a pulsating DC voltage (typically between 12V and 24V) between terminals S2 and S3. A steady or improper AC voltage often indicates a board failure or communication short.
- Does this board support 208/230V systems? Yes, while the control circuit operates on 24 VAC, the power board is designed to interface with standard 208/230V outdoor power supplies used in Mitsubishi P-Series units.
- Can I use this as a universal replacement? No, this is an OEM-specific part. Always verify the MPN T7WE80313 against your unit's service manual to ensure correct circuit architecture.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $310.08
-65%$310.08
$108.53Mitsubishi Electric T7WE80313 Power Board
The Mitsubishi Electric T7WE80313 Power Board is a critical HVAC control board designed for high-performance power regulation within specific PUY-A and PUZ-A outdoor units. As a genuine OEM replacement part, this power circuit board ensures seamless integration with the system's inverter-driven compressor and M-NET communication protocol, shielding sensitive electronic components from voltage fluctuations. Engineered for 24 VAC control circuits, the T7WE80313 manages the DC bus voltage and signal distribution to maintain consistent thermal output and energy efficiency in demanding light commercial and residential split systems. Replacing a faulty T7WE80313 control board restores proper communication between the indoor and outdoor units, preventing common S2-S3 signal errors and ensuring the Mitsubishi power module operates within original factory specifications for long-term field reliability.
Key Benefits
- Precise Voltage Regulation: Maintains stable power flow to protect the inverter compressor and internal sensors from electrical noise.
- Direct OEM Compatibility: Engineered specifically for Mitsubishi PUY-A12NHA4 and PUZ-A18NHA4 models to ensure plug-and-play installation without field modifications.
- Enhanced System Logic: Facilitates high-speed communication via the M-NET bus for accurate troubleshooting and state monitoring.
- Industrial-Grade Build: Constructed with high-thermal-tolerance capacitors and traces to withstand the harsh environment of an outdoor condenser.
Common Questions
- How do I diagnose a failure on the T7WE80313 power board? Technicians should check for a pulsating DC voltage (typically between 12V and 24V) between terminals S2 and S3. A steady or improper AC voltage often indicates a board failure or communication short.
- Does this board support 208/230V systems? Yes, while the control circuit operates on 24 VAC, the power board is designed to interface with standard 208/230V outdoor power supplies used in Mitsubishi P-Series units.
- Can I use this as a universal replacement? No, this is an OEM-specific part. Always verify the MPN T7WE80313 against your unit's service manual to ensure correct circuit architecture.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
