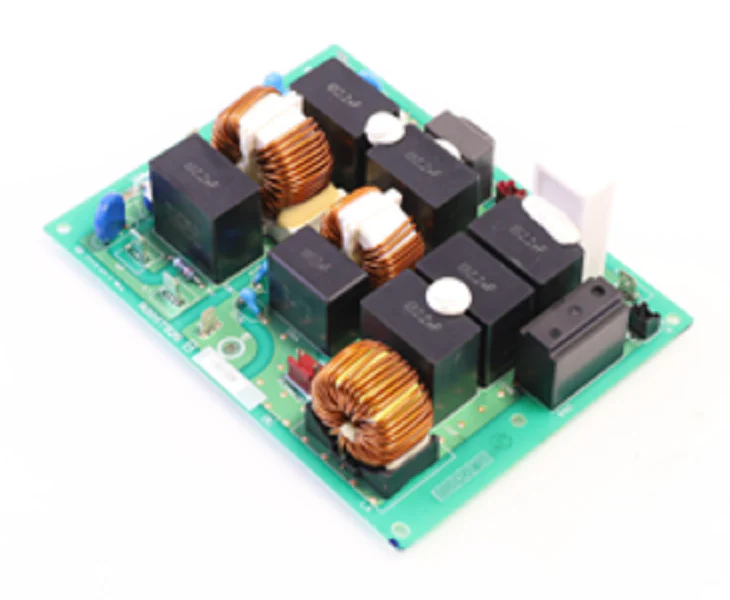

Mitsubishi Electric T7WE20346 Filter Board
When you are dealing with communication errors or fluctuating performance in industrial-grade inverter systems, the Mitsubishi Electric T7WE20346 Filter Board is a critical line of defense. This genuine OEM noise filter board is specifically engineered to suppress electromagnetic interference (EMI) and radio frequency interference (RFI) that can wreak havoc on sensitive logic circuits. For technicians servicing PUY-A and PUZ-A series units, this board ensures a clean power supply to the main controller, preventing the common "ghost" faults caused by electrical line noise. Manufactured with high-durability FR4 fire-resistant fiberglass, it provides the robust thermal stability required in high-amperage HVACR environments.
Installation of the Mitsubishi T7WE20346 is straightforward within existing electrical enclosures, designed to safeguard HVAC inverter parts from voltage spikes and harmonic distortions. By maintaining a stable signal frequency, it protects the longevity of the compressor and fan motor controls. For contractors, utilizing this precise Mitsubishi Electric replacement part is the only way to ensure the system meets original factory specifications for interference mitigation and operational reliability.
Key Benefits- EMI/RFI Suppression: Effectively eliminates electrical noise that interrupts communication between the indoor and outdoor units.
- Stable Power Distribution: Deliver consistent voltage to sensitive electronic control boards to prevent logic errors.
- OEM Compatibility: Specifically designed for Mitsubishi PUY-A and PUZ-A series heat pumps and air conditioners.
- Industrial Build Quality: Features high-grade materials for superior heat dissipation and environmental resistance in the field.
What are the signs of a failing T7WE20346 filter board?
Technicians typically look for intermittent communication faults, repetitive fuse blows on the power circuit, or visible scorch marks on the board components caused by line surges.
Is this board compatible with all Mitsubishi P-Series units?
While it is the standard for many PUY and PUZ models, always verify the part number T7WE20346 against your specific unit’s wiring diagram to ensure a proper match for the inverter logic.
Can I bypass the noise filter for testing?
Bypassing is never recommended for permanent operation. This board protects the main board from feedback; running without it risks permanent damage to the more expensive primary controls.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
