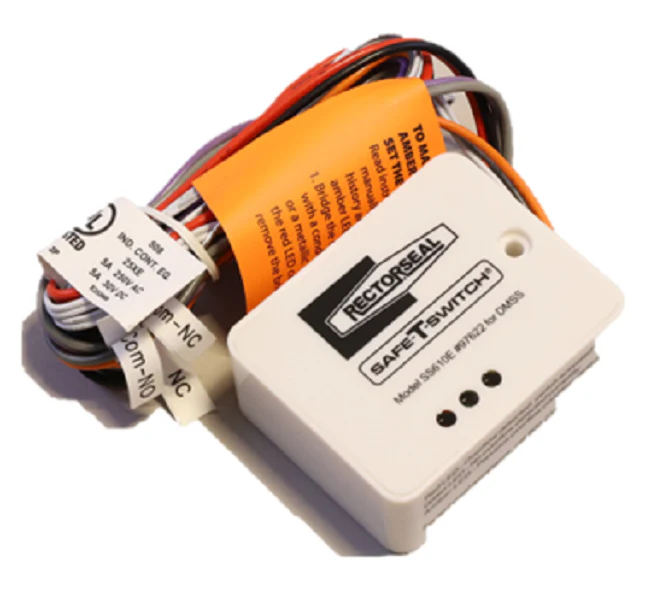

Mitsubishi Electric SS610E Sensor
The Mitsubishi Electric SS610E Sensor is a critical condensate overflow switch engineered specifically for ductless mini-split systems. This high-reliability drain pan water level sensor features solid-state microelectronics with no moving parts, eliminating the mechanical failure points common in traditional float switches. Designed for seamless integration, it is fully compatible with Mitsubishi M-Series (MSZ, MSY, MFZ), P-Series (PKA), and CITY MULTI (PKFY) indoor units. The multi-voltage CPU manages a wide power input range of 110-230VAC and offers versatile normally open (NO) and normally closed (NC) wiring configurations. Its slim-profile sensor probes allow for precise positioning directly in the primary drain pan or clipped onto the evaporator coils, providing a proactive shut-off response to prevent property damage. The logic circuit continuously samples for water presence, distinguishing between transient moisture and permanent blockages, and utilizes an onboard LED indicator for clear fault history and system status diagnostics.
Key Benefits for HVAC Contractors:
- Universal Compatibility: Includes specific wire harnesses for direct connection to Mitsubishi M-Series, P-Series, and CITY MULTI communication lines.
- Advanced Reliability: Solid-state technology with non-corroding probes ensures long-term performance without sticking or mechanical fatigue.
- Simplified Power: Draws power directly from the indoor unit, removing the need for external batteries or separate power supplies.
- Flexible Installation: Features a ratchet bracket for adjustable probe depth and a dedicated 5mm/7mm coil clip for versatile mounting options.
- Intelligent Diagnostics: Integrated LED fault history allows technicians to identify past trip events during maintenance calls.
Common Technical Questions:
- Where should the sensor probes be positioned? Probes should be installed where water level reaches its peak in the primary pan, typically just below the rim to ensure shut-off before overflow occurs.
- What does a flashing LED indicate? The onboard LED provides fault history; refer to the SS610E wiring diagram and reset instructions to clear the status after resolving a drain blockage.
- Can this be used on non-Mitsubishi systems? While optimized for Mitsubishi Electric, its 5A switching capacity and multi-voltage rating allow for broader application in various mini-split brands.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
