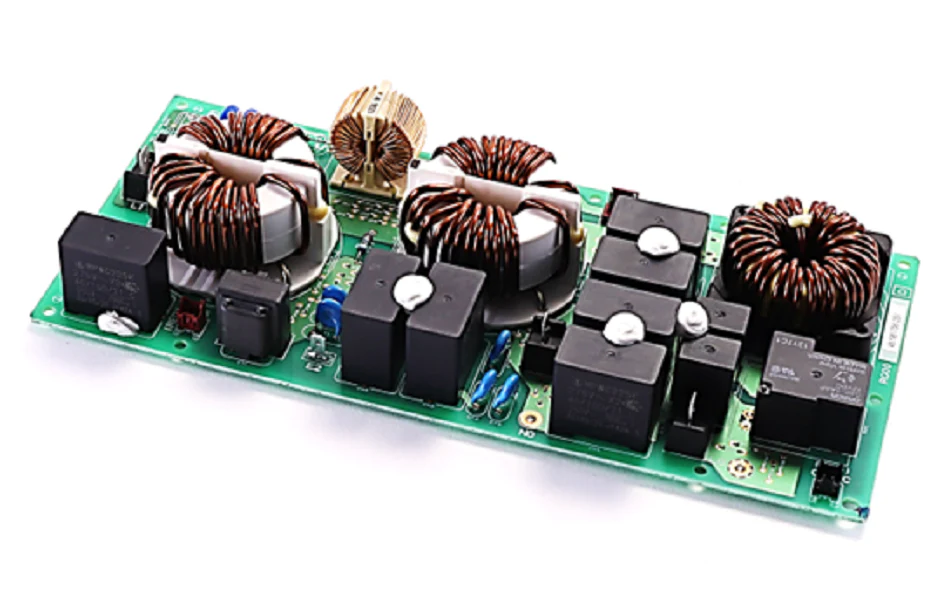

Mitsubishi Electric R01E22346 Filter Board
The Mitsubishi Electric R01E22346 Filter Board is a critical OEM replacement part designed for noise filtration and electrical stability in heavy-duty outdoor units. As a primary power supply filter, this circuit board is engineered to suppress electromagnetic interference (EMI) and protect sensitive control boards from high-voltage surges and signal distortion. Veterans in the field recognize this assembly as the necessary component for maintaining line integrity in specific PUZ and PUY series equipment, including the PUZ-A42NHA2 and PUY-A36NHA2 models. Precise engineering ensures the board manages erratic power fluctuations, preventing costly downstream component failure. When troubleshooting communication errors or power-on sequences in residential or commercial air conditioning systems, verifying the health of the R01E22346 noise filter is a standard diagnostic step. This genuine part replaces previous MITR01E18346 versions, providing the exact technical specifications required for seamless integration into ductless mini-split and central systems.
Key Benefits- Surge Protection: High-grade suppression components protect integrated control circuit boards from damaging electrical spikes.
- OEM Compatibility: Designed specifically for Mitsubishi Electric indoor/outdoor units to ensure factory-spec performance.
- EMI Reduction: Limits electromagnetic interference to improve signal clarity and overall system efficiency.
- Direct Technical Replacement: Fits accurately into designated mounts, eliminating the need for field modifications.
What are the symptoms of a failing R01E22346 filter board?
Technicians typically observe communication errors, frequent fuse blows on the outdoor unit, or total power failure to the inverter board. Physically, look for scorched traces or swollen capacitors on the noise filter circuit.
Is the R01E22346 compatible with P-Series units?
Yes, this Mitsubishi R01E22346 is verified for various P-Series models like the PUZ-A30NHA4 and PUY-A42NHA4. Always cross-reference the model number on the unit’s data plate to confirm the correct board revision.
How does this board improve system longevity?
By acting as a dedicated barrier against line noise and voltage transients, it prevents the gradual degradation of the more expensive microprocessor-driven HVAC control boards.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
