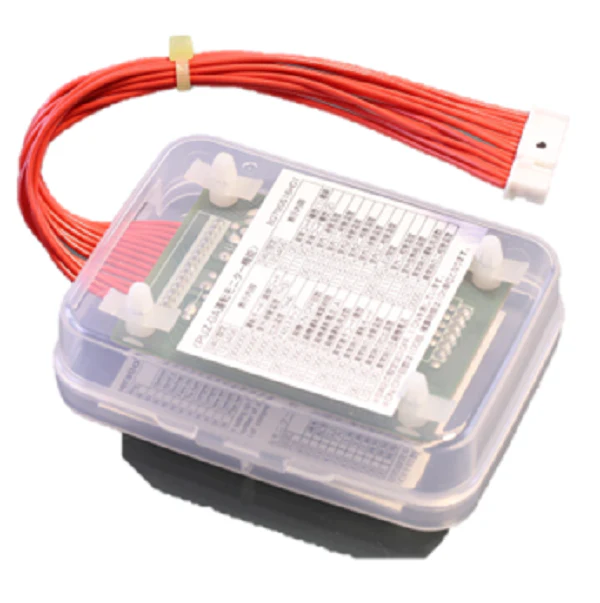

Mitsubishi Electric PAC-SK52ST Service Tool
The Mitsubishi Electric PAC-SK52ST Service Tool is a critical diagnostic interface designed for veteran technicians working with P-Series and M-Series systems. This proprietary maintenance tool connects directly to the CNM connector on the outdoor unit control board or branch box, providing a direct window into system performance without the need for manual gauges or external multimeters. By utilizing the integrated integrated LED display and adjustable DIP switch settings, contractors can monitor real-time compressor frequency, thermistor values, and subcooling data. This HVAC diagnostic tool streamlines the troubleshooting process by pinpointing error codes and operational anomalies in hard-to-reach installations. Engineered for high-efficiency performance monitoring, the PAC-SK52ST eliminates the risk of refrigerant contamination during routine checks. Its compact form factor and rugged build make it an essential addition to any professional service tool kit for maintaining Mitsubishi Electric mini-split and multi-zone systems.
Key Benefits:- Direct Board Interface: Connects to the primary control board for real-time sensor data and logic monitoring.
- Manifold-Free Diagnostics: Enables preventative maintenance and system checks without opening the refrigeration circuit, preventing charge loss.
- Comprehensive Data Access: Displays precise values for pipe temperatures, LEV opening pulses, and compressor warm-up states.
- Field Efficiency: Reduces diagnostic time by providing instant access to inspection codes and history directly at the condenser.
- Which systems are compatible with the PAC-SK52ST? It is specifically designed for Mitsubishi Electric P-Series outdoor units and M-Series branch boxes using the A-Control architecture.
- Does this tool require external power? No, the tool pulls 5V DC power directly from the outdoor unit control board once connected to the CNM port.
- Can it be used to change system settings? While primarily a diagnostic and monitoring tool, specific DIP switch configurations allow technicians to view and verify function-setting values as outlined in the service manual.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
