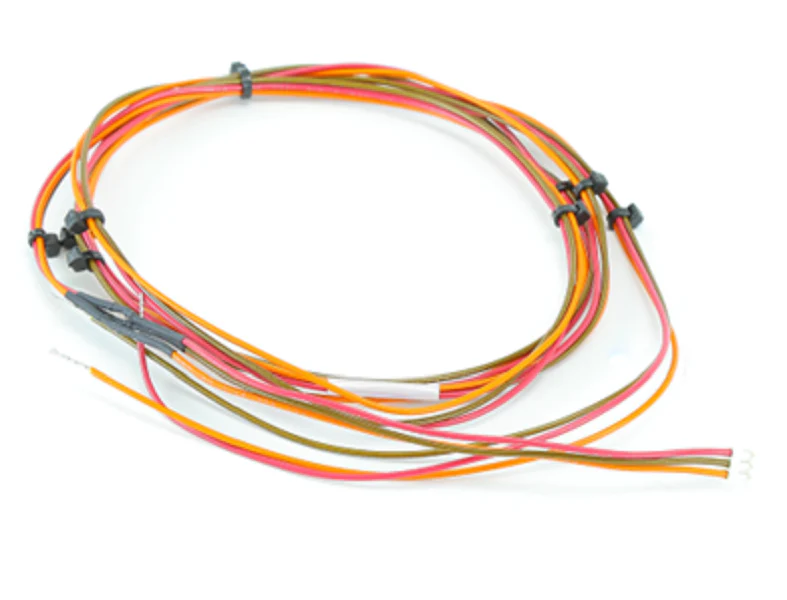

Mitsubishi Electric PAC-715AD Connector Plug
The Mitsubishi Electric PAC-715AD Connector Plug is an essential field-installation component for technicians integrating external control signals with M-Series, P-Series, and CITY MULTI indoor units. This 3-pin connector plug interfaces directly with the CN32 adapter terminal on the indoor controller board, enabling specialized Remote On/Off functionality and forced fan operation via the SWE connector. Designed for high-reliability electrical contact in industrial environments, this cable allows you to bypass standard thermostat limitations to implement timer operation or interlock the HVAC system with building management relays. The 2-meter factory lead supports field extension up to 10 meters using 0.5 to 1.25mm² sheathed vinyl cord. By utilizing this OEM replacement part, contractors can ensure seamless HVAC communication and maintain system-level logic without compromising the integrity of the indoor unit control board. Whether you are managing a ductless mini-split or a ducted air conditioning unit, the PAC-715AD provides the necessary physical layer for professional external circuit integration.
Key Benefits:- Ensures a secure, keyed connection to the CN32 terminal, preventing improper wiring or pin damage.
- Enables Remote On/Off control and external signal integration for advanced building automation.
- Compatible with a wide array of Mitsubishi models, including SEZ, SLZ, SVZ, and PEAD series.
- Facilitates forced fan operation when connected to the SWE connector port.
- Supports locally procured wiring extensions for flexible installation in commercial zones.
Which indoor units are compatible with the PAC-715AD?
This connector is specifically designed for Mitsubishi Electric M-Series (SEZ, SLZ, SVZ), P-Series (PCA, PLA, PEA, PEAD, PKA), and most CITY MULTI individual indoor units except for PWFY models.
Can I extend the cable length for remote installations?
Yes, the PAC-715AD includes a factory lead that can be extended up to 10 meters using a transit relay and appropriate 3-wire sheathed cable.
Does this plug allow for fan speed or temperature adjustment?
No, this 3-pin adapter is primarily for On/Off level signals. While it controls operation status, other settings like fan speed and setpoint are still managed by the primary remote controller unless otherwise prohibited by system logic.
