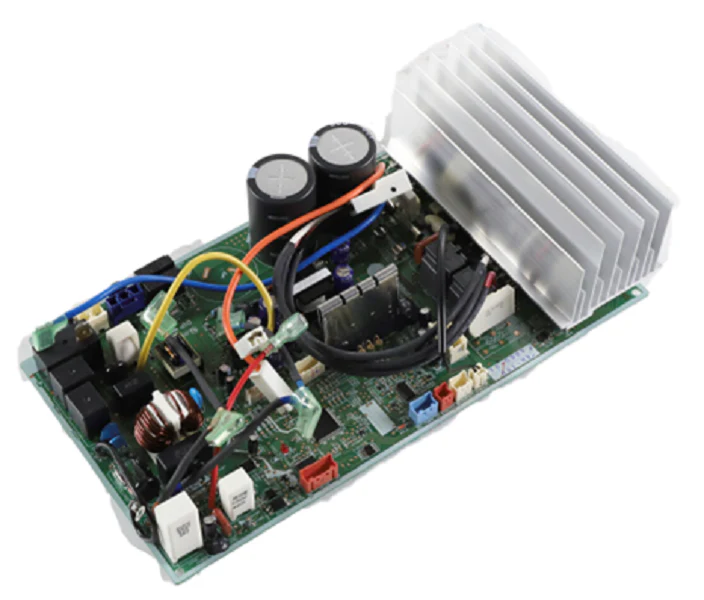

Mitsubishi Electric E27C78451 Board
The Mitsubishi Electric E27C78451 PC Inverter Board is a critical OEM replacement part designed for high-performance HVAC inverter systems and ductless mini-split units. As a veteran technician knows, the inverter board is the brain of the outdoor condenser, responsible for precise compressor speed control and converting incoming AC power into a variable DC frequency. This board is constructed from robust FR4 fire-resistant fiberglass to withstand high-heat environments and maintain energy efficiency by eliminating short-cycling. It is a genuine Mitsubishi Electric Trane part (MPN: E27C78451, also referenced as 386735), ensuring exact OEM compatibility and electrical signal synchronization. When diagnosing communication errors or compressor startup failures, replacing a compromised inverter circuit board with this factory-spec component is essential for restored system reliability and optimized cooling performance. Ensure you check the DC smoothing reactor and fan motor windings during installation to prevent downstream voltage transients from affecting the new board.
- Precise Frequency Regulation: Orchestrates the modulation of the compressor to match building load precisely, reducing energy consumption.
- OEM Standards: Genuine Mitsubishi Electric maintenance part engineered specifically for technical alignment with residential and light commercial outdoor units.
- Durable Construction: Features high-quality FR4 fiberglass and integrated heat-dissipating components for longevity in demanding field conditions.
- System Communication: Facilitates seamless S2-S3 DC signal interaction between the indoor and outdoor units to prevent E1 or serial signal error codes.
Common Questions
What are the signs of a failing inverter board?
Common indicators include the outdoor unit showing no signs of life, frequent "over-current" or "startup failure" error codes (often 5 flashes on the indicator lamp), and blown 2-Amp Slo-Blo glass fuses on the PCB power supply section.
Can I repair the board instead of replacing it?
While some technicians may attempt to replace components like the IGBT or varistors after a surge, a full replacement with a new E27C78451 inverter board is the industry-standard method to ensure all logic circuits and power modules are operating within manufacturer tolerances.
Is this board compatible with different voltage outdoor units?
This board is typically utilized in systems supporting 120VAC or 240VAC single-phase power, depending on the specific Mitsubishi Electric model. Always verify the part number against the unit's service manual before installation.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
