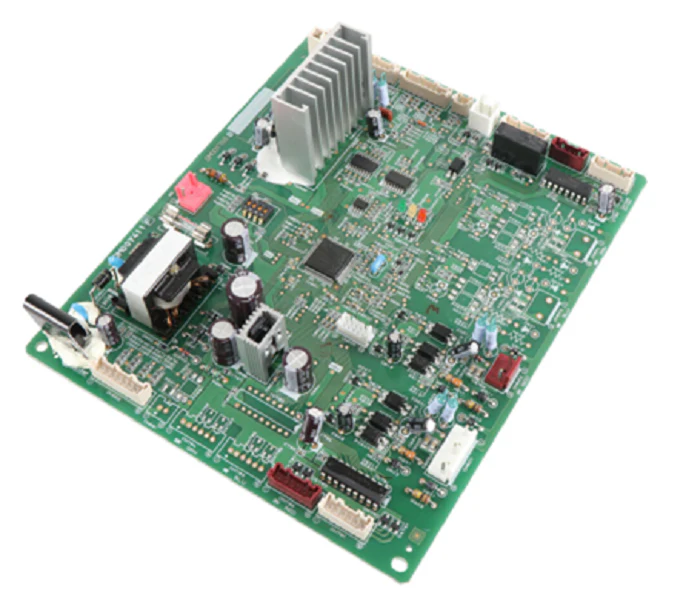

Mitsubishi Electric E22T76450 Control Board
The Mitsubishi Electric E22T76450 Control Board is a critical OEM replacement part designed for high-precision regulation of outdoor units in multi-zone heat pump and ductless mini-split systems. This inverter control PCB manages complex operations including compressor frequency modulation, electronic expansion valve (EEV) positioning, and fan motor speed control to maintain system efficiency. Engineered with a fire-resistant FR4 fiberglass substrate, it excels in demanding industrial HVAC settings where environmental stability is paramount. The board measures 6-3/8 inches by 7-1/2 inches, allowing for direct-fit installation into the existing housing of compatible MXZ series systems. By replacing a faulty circuit board with this genuine component, technicians can resolve communication errors, defrost cycle failures, and power delivery issues. Its robust design ensures consistent performance during peak thermal loads, effectively reducing operational downtime and preventing damage to secondary components like the IPM (Intelligent Power Module).
Key Benefits- Precise Inverter Regulation: Corrects voltage fluctuations and ensures smooth compressor discharge modulation for optimal energy consumption.
- OEM Compatibility: Designed as a direct genuine replacement for Mitsubishi Electric E22T76450, maintaining original factory specifications.
- Environmentally Resilient: Features a durable construction with protective coatings to resist moisture and contaminants in outdoor unit environments.
- Simplified Integration: Utilizes standard harness connectors and round terminals for efficient troubleshooting and PCB installation.
How do I verify if the E22T76450 is the correct board for my MXZ unit?
Confirm the MPN E22T76450 on the original component or check your unit's wiring diagram. This outdoor control board is specifically tailored for Mitsubishi Electric Corporation inverter systems such as the MXZ-2B20NA-1.
What are the signs that this control board needs replacement?
Common indicators include error codes related to serial communication, failure to initiate defrost cycles, or the outdoor fan failing to ramp up during high demand.
Is specialized equipment required for installation?
Standard technician tools are sufficient, though applying silicone grease to the IPM radiating surface is mandatory during inverter PCB replacement to prevent thermal failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
