Mitsubishi Electric E22F76301 Motor

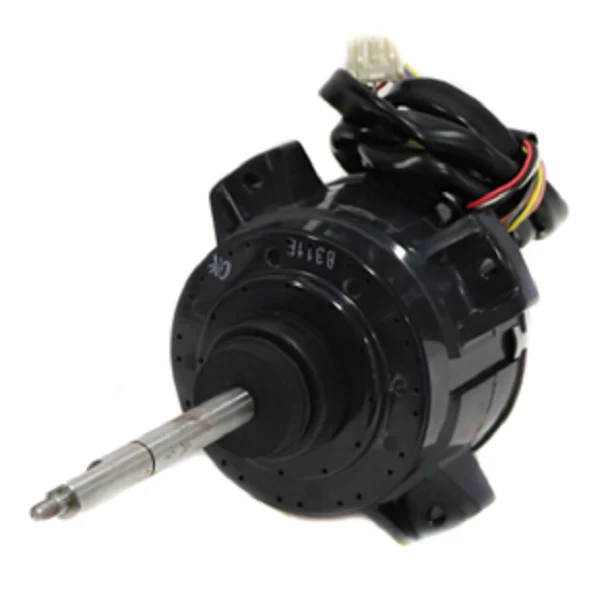

The Mitsubishi Electric E22F76301 Motor is a high-spec OEM replacement fan motor engineered for precision in ductless mini-split systems and outdoor condenser units. This 280VDC brushless motor is a direct substitute for the legacy E12F76301, delivering a steady 77W power output through an 8-pole configuration. Designed for high torque at lower RPMs, it ensures optimal airflow across the coil while maintaining the tight electrical tolerances required by inverter-driven HVAC systems. As a veteran-grade Mitsubishi Electric HVAC part, the E22F76301 features a robust build to handle the continuous duty cycles of MUZ-FH and MUZ-GE series condensers. When swapping this condenser fan motor, technicians should always verify the shaft dimensions—15/32" diameter and 4-3/8" length—to ensure physical compatibility with existing fan blades. Integrating this genuine DC fan motor restores factory-standard efficiency, prevents vibration issues, and mitigates the risk of communication errors common with non-OEM alternatives.
Key Benefits
- Direct OEM Compatibility: Precise electrical match for Mitsubishi Electric inverter boards, replacing part E12F76301 without modification.
- High-Efficiency 8-Pole Design: Provides superior torque and stable operation for 280VDC outdoor fan circuits.
- Optimized Heat Dissipation: Engineered to withstand high ambient temperatures in condenser fan motor applications.
- Quiet Operation: Precision-balanced internals reduce mechanical noise and vibration in residential zones.
Common Questions
Which outdoor units are compatible with the E22F76301?
This motor is commonly used in MUZ-FH15NA, MUZ-FH18NA, MUY-GE24NA, and MUZ-GE24NA models, among others in the Mitsubishi Electric lineup.
Should I replace the capacitor at the same time?
Since this is a VDC motor driven by an inverter board, it does not use a traditional start/run capacitor. However, you should inspect the fan blade for balance issues to prevent premature motor wear.
Can this motor replace a 340VDC version?
No. The E22F76301 is rated specifically for 280VDC. Installing a lower-voltage motor in a higher-voltage circuit will lead to immediate electrical failure on the control board.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $201.52
-65%$201.52
$70.53Mitsubishi Electric E22F76301 Motor
The Mitsubishi Electric E22F76301 Motor is a high-spec OEM replacement fan motor engineered for precision in ductless mini-split systems and outdoor condenser units. This 280VDC brushless motor is a direct substitute for the legacy E12F76301, delivering a steady 77W power output through an 8-pole configuration. Designed for high torque at lower RPMs, it ensures optimal airflow across the coil while maintaining the tight electrical tolerances required by inverter-driven HVAC systems. As a veteran-grade Mitsubishi Electric HVAC part, the E22F76301 features a robust build to handle the continuous duty cycles of MUZ-FH and MUZ-GE series condensers. When swapping this condenser fan motor, technicians should always verify the shaft dimensions—15/32" diameter and 4-3/8" length—to ensure physical compatibility with existing fan blades. Integrating this genuine DC fan motor restores factory-standard efficiency, prevents vibration issues, and mitigates the risk of communication errors common with non-OEM alternatives.
Key Benefits
- Direct OEM Compatibility: Precise electrical match for Mitsubishi Electric inverter boards, replacing part E12F76301 without modification.
- High-Efficiency 8-Pole Design: Provides superior torque and stable operation for 280VDC outdoor fan circuits.
- Optimized Heat Dissipation: Engineered to withstand high ambient temperatures in condenser fan motor applications.
- Quiet Operation: Precision-balanced internals reduce mechanical noise and vibration in residential zones.
Common Questions
Which outdoor units are compatible with the E22F76301?
This motor is commonly used in MUZ-FH15NA, MUZ-FH18NA, MUY-GE24NA, and MUZ-GE24NA models, among others in the Mitsubishi Electric lineup.
Should I replace the capacitor at the same time?
Since this is a VDC motor driven by an inverter board, it does not use a traditional start/run capacitor. However, you should inspect the fan blade for balance issues to prevent premature motor wear.
Can this motor replace a 340VDC version?
No. The E22F76301 is rated specifically for 280VDC. Installing a lower-voltage motor in a higher-voltage circuit will lead to immediate electrical failure on the control board.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
