Mitsubishi Electric E22E82451 Board

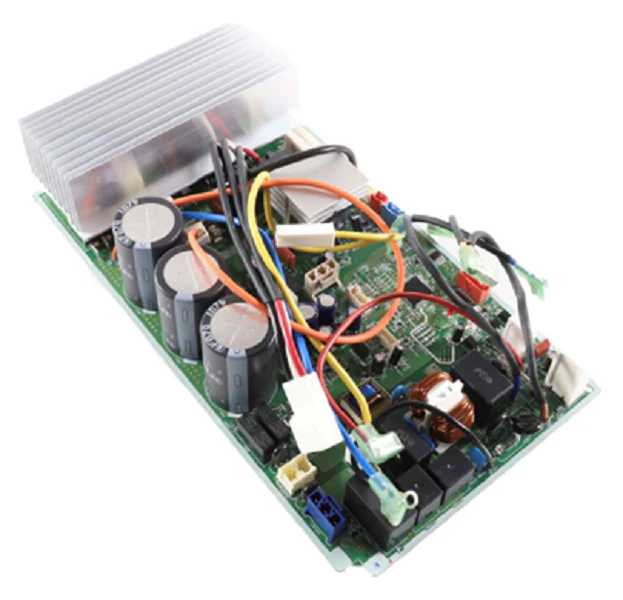

The Mitsubishi Electric E22E82451 Inverter PC Board is a critical OEM replacement part designed for high-efficiency split systems and heat pump units. As a veteran technician knows, the inverter board is the brain of the outdoor condenser, managing compressor speed regulation and communication between system components. This specific inverter control board operates on a 208-230V power supply at 50/60 Hz, featuring a precise 1.0 amp current rating and a low 2.0-watt power consumption profile. Engineered with screw terminals for secure field wiring, the E22E82451 ensures stable voltage and frequency parameters, which are essential for maintaining the operational integrity of Mitsubishi Electric HVAC systems. Replacing a failed board with this genuine Mitsubishi E22E82451 restores proper serial signal feedback and protects the compressor from start-up failures or over-current conditions often triggered by faulty generic controls.
Key Benefits:
- Precise Frequency Modulation: Optimizes compressor speed for maximum energy efficiency and consistent climate control.
- Robust Circuitry: Designed to withstand the demanding thermal environment of outdoor condensers, operating effectively from -10°C to 60°C.
- Simplified Integration: Features standard screw terminal connectors for reliable, low-resistance electrical bonds during installation.
- System Communication: Facilitates seamless serial signal exchange between the indoor and outdoor units to prevent 6-blink timer errors.
Common Questions:
How do I confirm if the E22E82451 is the correct board for my unit?
Technicians should verify the part number against the service manual for the specific MUZ or MSZ model. This board is typically used in inverter-driven outdoor sections where inverter PCB failure is suspected due to communication loss or compressor start-up issues.
What are the signs of a failing inverter PC board?
Common indicators include a non-responsive outdoor unit, specific LED flash codes on the indoor unit (such as 4 or 5 flashes), or an open F62 slo-blo fuse on the board itself, often caused by power surges or component short-circuiting.
Does this board require specialized tools for installation?
Standard HVAC hand tools are sufficient for the screw terminals, but a high-quality multimeter is required to verify the 208-230V input and DC bus voltage before and after installation to ensure system safety.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $506.70
-65%$506.70
$177.34Mitsubishi Electric E22E82451 Board
The Mitsubishi Electric E22E82451 Inverter PC Board is a critical OEM replacement part designed for high-efficiency split systems and heat pump units. As a veteran technician knows, the inverter board is the brain of the outdoor condenser, managing compressor speed regulation and communication between system components. This specific inverter control board operates on a 208-230V power supply at 50/60 Hz, featuring a precise 1.0 amp current rating and a low 2.0-watt power consumption profile. Engineered with screw terminals for secure field wiring, the E22E82451 ensures stable voltage and frequency parameters, which are essential for maintaining the operational integrity of Mitsubishi Electric HVAC systems. Replacing a failed board with this genuine Mitsubishi E22E82451 restores proper serial signal feedback and protects the compressor from start-up failures or over-current conditions often triggered by faulty generic controls.
Key Benefits:
- Precise Frequency Modulation: Optimizes compressor speed for maximum energy efficiency and consistent climate control.
- Robust Circuitry: Designed to withstand the demanding thermal environment of outdoor condensers, operating effectively from -10°C to 60°C.
- Simplified Integration: Features standard screw terminal connectors for reliable, low-resistance electrical bonds during installation.
- System Communication: Facilitates seamless serial signal exchange between the indoor and outdoor units to prevent 6-blink timer errors.
Common Questions:
How do I confirm if the E22E82451 is the correct board for my unit?
Technicians should verify the part number against the service manual for the specific MUZ or MSZ model. This board is typically used in inverter-driven outdoor sections where inverter PCB failure is suspected due to communication loss or compressor start-up issues.
What are the signs of a failing inverter PC board?
Common indicators include a non-responsive outdoor unit, specific LED flash codes on the indoor unit (such as 4 or 5 flashes), or an open F62 slo-blo fuse on the board itself, often caused by power surges or component short-circuiting.
Does this board require specialized tools for installation?
Standard HVAC hand tools are sufficient for the screw terminals, but a high-quality multimeter is required to verify the 208-230V input and DC bus voltage before and after installation to ensure system safety.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
