Mitsubishi Electric E22D38444 Board

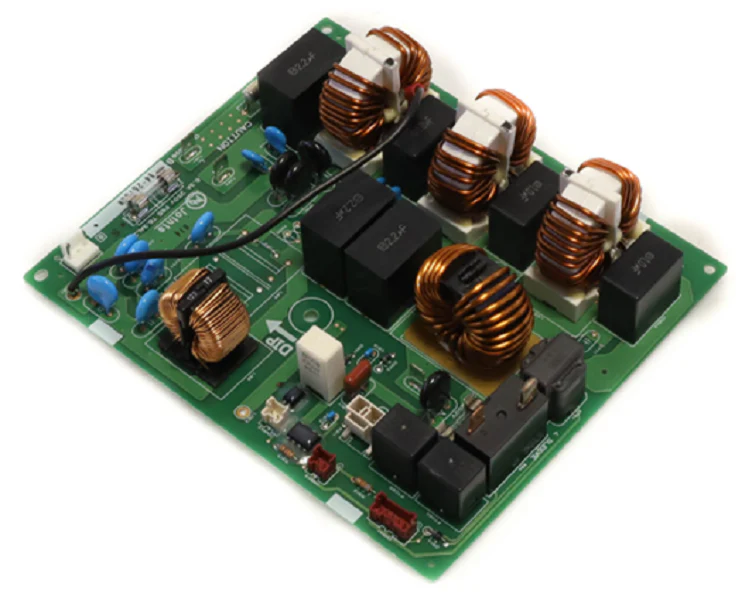

The Mitsubishi Electric E22D38444 Noise Filter P.C. Board is a specialized genuine OEM replacement component designed for Mitsubishi MXZ series outdoor units and MSY/MSZ mini-split systems. This noise filter PCB serves as a critical electrical barrier, suppressing electromagnetic interference (EMI) and line noise that can compromise the performance of sensitive inverter power boards. Acting similarly to a single-pole contactor with an integrated current limiting resistor, it ensures that one leg of power remains constant while managing voltage surges through the relay during the call for operation.
For technicians diagnosing E1 communication errors or shorted power boards, the E22D38444 is the primary defense for the Intelligent Power Module (IPM) and control modules. Replacing a damaged or carbon-scored noise filter board is essential to restore proper voltage flow and protect the system from harmonics distortion. This board is engineered for heavy-duty HVAC industrial applications, providing long-term signal integrity and preventing premature failure of the compressor inverter. Verify part number compatibility with the unit’s wiring schematic to ensure precise electrical suppression and voltage stability during high-demand cooling or heating cycles.
Key Benefits for Technicians:- EMI Suppression: Effectively eliminates high-frequency electrical noise that causes communication faults between indoor and outdoor sections.
- Component Protection: Shields the power board and microprocessor from line voltage spikes and harmonic interference.
- OEM Precision: Guaranteed genuine Mitsubishi Electric specifications for direct fitment in MXZ-C systems and M-Series heat pumps.
- Enhanced Reliability: Resolves issues related to blown resistors and relay failures caused by back-fed shorts from the inverter board.
How do I know if the noise filter board is faulty?
Technicians should check for 208/230V AC output at terminals L and N. If the input power is present but the output is missing, the internal resistor or relay may be compromised. A visual inspection often reveals scorch marks on the PCB.
Will a bad noise filter board damage my compressor?
While it primarily protects electronics, a noise filter failure can lead to improper DC voltage conversion at the power board, which may result in irregular inverter operation and system lockdowns.
Is this compatible with non-inverter systems?
No, the E22D38444 is specifically engineered for Mitsubishi Electric inverter-driven HVAC units that require precise frequency management and noise suppression.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $278.83
-65%$278.83
$97.59Mitsubishi Electric E22D38444 Board
The Mitsubishi Electric E22D38444 Noise Filter P.C. Board is a specialized genuine OEM replacement component designed for Mitsubishi MXZ series outdoor units and MSY/MSZ mini-split systems. This noise filter PCB serves as a critical electrical barrier, suppressing electromagnetic interference (EMI) and line noise that can compromise the performance of sensitive inverter power boards. Acting similarly to a single-pole contactor with an integrated current limiting resistor, it ensures that one leg of power remains constant while managing voltage surges through the relay during the call for operation.
For technicians diagnosing E1 communication errors or shorted power boards, the E22D38444 is the primary defense for the Intelligent Power Module (IPM) and control modules. Replacing a damaged or carbon-scored noise filter board is essential to restore proper voltage flow and protect the system from harmonics distortion. This board is engineered for heavy-duty HVAC industrial applications, providing long-term signal integrity and preventing premature failure of the compressor inverter. Verify part number compatibility with the unit’s wiring schematic to ensure precise electrical suppression and voltage stability during high-demand cooling or heating cycles.
Key Benefits for Technicians:- EMI Suppression: Effectively eliminates high-frequency electrical noise that causes communication faults between indoor and outdoor sections.
- Component Protection: Shields the power board and microprocessor from line voltage spikes and harmonic interference.
- OEM Precision: Guaranteed genuine Mitsubishi Electric specifications for direct fitment in MXZ-C systems and M-Series heat pumps.
- Enhanced Reliability: Resolves issues related to blown resistors and relay failures caused by back-fed shorts from the inverter board.
How do I know if the noise filter board is faulty?
Technicians should check for 208/230V AC output at terminals L and N. If the input power is present but the output is missing, the internal resistor or relay may be compromised. A visual inspection often reveals scorch marks on the PCB.
Will a bad noise filter board damage my compressor?
While it primarily protects electronics, a noise filter failure can lead to improper DC voltage conversion at the power board, which may result in irregular inverter operation and system lockdowns.
Is this compatible with non-inverter systems?
No, the E22D38444 is specifically engineered for Mitsubishi Electric inverter-driven HVAC units that require precise frequency management and noise suppression.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
