Mitsubishi Electric E22D21444 Board

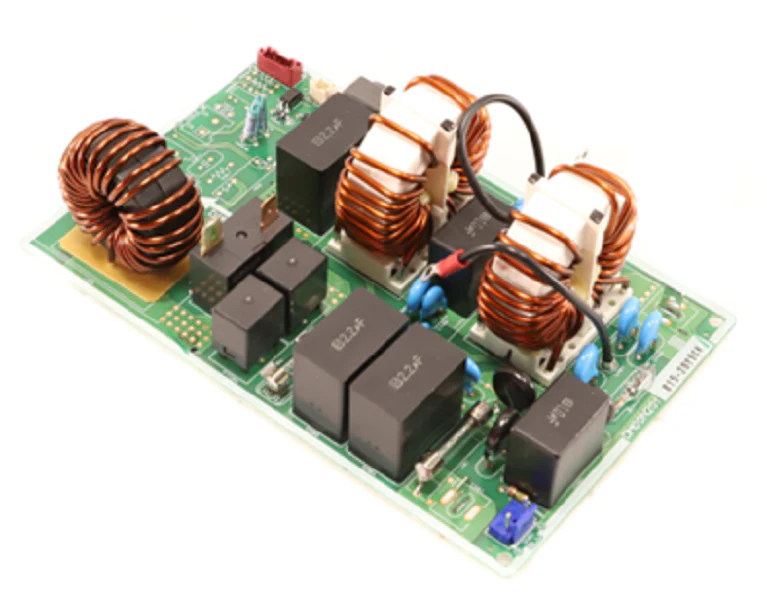

When troubleshooting communication faults or erratic board behavior in Mitsubishi Electric ductless systems, the Mitsubishi Electric E22D21444 Noise Filter PC Board is a critical component for maintaining signal integrity. This OEM board is engineered to mitigate electromagnetic interference (EMI) and radio frequency interference (RFI) that can corrupt data signals between the indoor and outdoor units. Operating as a protective barrier, it handles 120V/240V power at a 5A current capacity, ensuring that high-frequency noise from the inverter circuit does not damage sensitive downstream microprocessors.
Replacing a charred or failed noise filter board is often the final step in resolving persistent "6 flashes" communication errors or high-voltage fluctuations. As a direct replacement for the E12D21444, this mini-split replacement part is built for seamless integration into the outdoor unit's control stack. Pros should verify the 20-ohm resistance across the parallel current-limiting resistor and check for a shorted power board before installation to prevent immediate failure of the new HVAC control board.
Key Benefits for Technicians:- Universal Voltage Compatibility: Rated for both 120V and 240V AC operations to support various M-Series and P-Series models.
- EMI/RFI Suppression: Actively filters out electrical "noise" to prevent S-Bus communication failures and erratic system restarts.
- Direct OEM Fit: Guaranteed physical and electrical compatibility as a genuine Mitsubishi Electric part, reducing field modification time.
- Surge Protection: Provides a sacrificial layer of defense against minor power irregularities and voltage spikes.
How do I know if the noise filter board is causing a communication error?
If you measure 230V entering the board but zero voltage at the output terminals (typically L and N), the board's internal relay or resistor has likely failed. Always check the fuses (6.3A 250V) on the board first.
Can a shorted inverter board blow this noise filter?
Yes. A shorted power/inverter board often draws excessive current through the noise filter's resistor. If you find a black or shattered fuse on the E22D21444, you must test the inverter's P-N terminals for a short before replacing this board.
What does it mean if the green LED is not lit on the main PCB?
If the noise filter board fails to pass the "standby" leg of power, the main controller will not power up, leading to a "dead" unit symptom even with the breaker engaged.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $302.26
-65%$302.26
$105.79Mitsubishi Electric E22D21444 Board
When troubleshooting communication faults or erratic board behavior in Mitsubishi Electric ductless systems, the Mitsubishi Electric E22D21444 Noise Filter PC Board is a critical component for maintaining signal integrity. This OEM board is engineered to mitigate electromagnetic interference (EMI) and radio frequency interference (RFI) that can corrupt data signals between the indoor and outdoor units. Operating as a protective barrier, it handles 120V/240V power at a 5A current capacity, ensuring that high-frequency noise from the inverter circuit does not damage sensitive downstream microprocessors.
Replacing a charred or failed noise filter board is often the final step in resolving persistent "6 flashes" communication errors or high-voltage fluctuations. As a direct replacement for the E12D21444, this mini-split replacement part is built for seamless integration into the outdoor unit's control stack. Pros should verify the 20-ohm resistance across the parallel current-limiting resistor and check for a shorted power board before installation to prevent immediate failure of the new HVAC control board.
Key Benefits for Technicians:- Universal Voltage Compatibility: Rated for both 120V and 240V AC operations to support various M-Series and P-Series models.
- EMI/RFI Suppression: Actively filters out electrical "noise" to prevent S-Bus communication failures and erratic system restarts.
- Direct OEM Fit: Guaranteed physical and electrical compatibility as a genuine Mitsubishi Electric part, reducing field modification time.
- Surge Protection: Provides a sacrificial layer of defense against minor power irregularities and voltage spikes.
How do I know if the noise filter board is causing a communication error?
If you measure 230V entering the board but zero voltage at the output terminals (typically L and N), the board's internal relay or resistor has likely failed. Always check the fuses (6.3A 250V) on the board first.
Can a shorted inverter board blow this noise filter?
Yes. A shorted power/inverter board often draws excessive current through the noise filter's resistor. If you find a black or shattered fuse on the E22D21444, you must test the inverter's P-N terminals for a short before replacing this board.
What does it mean if the green LED is not lit on the main PCB?
If the noise filter board fails to pass the "standby" leg of power, the main controller will not power up, leading to a "dead" unit symptom even with the breaker engaged.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
